PP clamp saddle SA3814 series

PE

Product overview

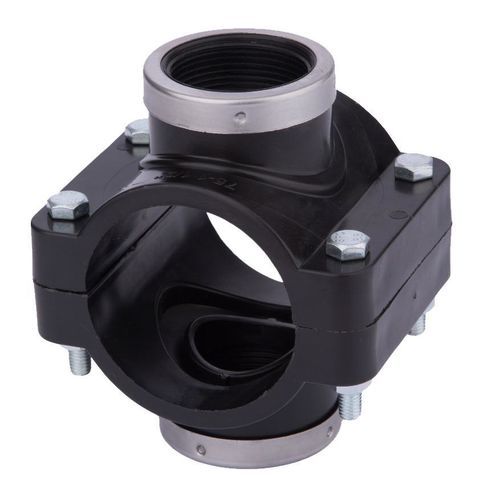

Double saddle PP clamp for irrigation systems. Galvanized finish, secured with 4 bolts. Designed to create a branch connection on main pipelines; available in multiple diameters and outlet sizes as listed in the datasheet.

Applications

• Irrigation networks and laterals
• Agricultural water distribution systems
• Connection of branch fittings to PE/PP mains

Datasheet (Item code | d x g | Weight (g))

• Item code | d x g | Weight (g)
• SA3814K075B | 75 x 1/2 | 361.14
• SA3814K075C | 75 x 3/4 | 369.46
• SA3814K075D | 75 x 1 | 382.68
• SA3814K075F | 75 x 1"1/2 | 499.1
• SA3814K075G | 75 x 2 | 508.4
• SA3814K090B | 90 x 1/2 | 470.84
• SA3814K090C | 90 x 3/4 | 473.86
• SA3814K090D | 90 x 1 | 490.58
• SA3814K090E | 90 x 1"1/4 | 558.4
• SA3814K090F | 90 x T’1/2 | 576.5
• SA3814K090G | 90 x 2 | 601.8
• SA3814K110C | 110 x 3/4 | 553.98
• SA3814K110D | 110 x 1 | 563.18
• SA3814K110E | 110 x 1"1/4 | 608.1
• SA3814K110F | 110 x 1"1/2 | 610.8
• SA3814K110G | 110 x 2 | 681.2
• SA3814K110I | 110 x 3 | 842.1

Technical specifications

• Product name / model: SA3814
• Description: Double saddle, galvanized finish, 4 bolts
• Material / Finish: Galvanized
• Bolts: 4 bolts
• Application: Irrigation
• Brand: KP
• Category / Type: PP clamp saddles
• Variants: See datasheet above for item codes, sizes and weights

Ordering information

• Order by item code from the datasheet list
• Contact supplier or distributor for availability, lead time and packaging
