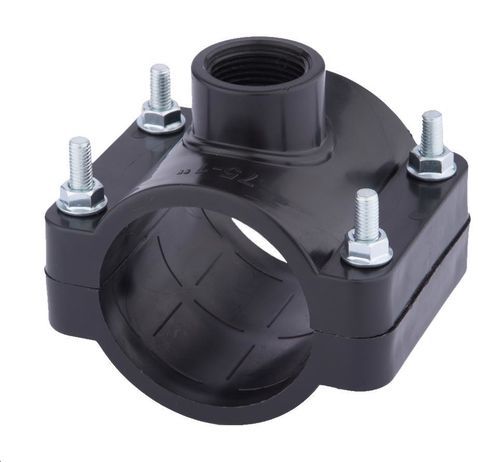

Bolt pipe clamp SA3514 series

galvanised steel

Product overview
SA3514 - SADDLE GALVANIZED 4 BOLTS. Irrigation application: saddle for clamping onto pipes with a 4-bolt galvanized assembly for secure connection.

Short description
SADDLE GALVANIZED 4 BOLTS

Key information

• Type: PP clamp saddles
• Brand: KP
• Category: PP clamp saddles

Summary
SADDLE GALVANIZED 4 BOLTS

Datasheet (table)
Item code | d x g | Weight
SA3514K075B | 75 x 1/2 | 332.4
SA3514K075C | 75 x 3/4 | 334.8
SA3514K075D | 75 x 1 | 339.3
SA3514K075F | 75 x 1"1/2 | 348.8
SA3514K075G | 75 x 2 | 385.2
SA3514K090B | 90 x 1/2 | 438.5
SA3514K090C | 90 x 3/4 | 436.3
SA3514K090D | 90 x 1 | 443.6
SA3514K090E | 90 x 1"1/4 | 472.1
SA3514K090F | 90 x 1"1/2 | 452.8
SA3514K090G | 90 x 2 | 484.6
SA3514K110C | 110 x 3/4 | 535.5
SA3514K110D | 110 x 1 | 542.1
SA3514K110E | 110 x 1"1/4 | 556.4
SA3514K110F | 110 x 1"1/2 | 553.5
SA3514K110G | 110 x 2 | 581.9
SA3514K110I | 110 x 3 | 635.7

Notes
Designed for irrigation systems; galvanized 4-bolt saddle construction provides a secure and durable pipe connection for water distribution lines.

Characteristics / technical specifications

• Model: SA3514
• Product type: PP clamp saddle (galvanized saddle with 4 bolts)
• Intended use: Irrigation / pipe saddle connection
• Brand: KP
• Available item codes and dimensions with weights: see Datasheet (table) above
