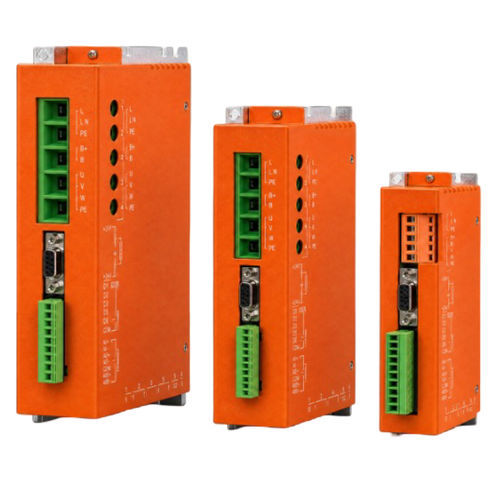

Brushless DC drive BLAR-09070-MH

three-phasepermanent magnetModbus

Overview
The BLAR series is an industrial high-performance intelligent digital brushless DC (BLDC) drive family integrating positioning control and drive functions in one unit. The BLAR-09070-MH supports motor control up to 15 kW and is suited for speed and torque control of permanent-magnet BLDC motors with Hall or sensorless feedback. Interfaces include external control, RS232, RS485 (Modbus RTU), and optional CANopen; feedback options include digital Hall and incremental encoder.

Key Highlights

• Supply voltage: 18–90 VDC (variants at 135 / 180 VDC on technical page)
• Continuous current: 70 Arms
• Peak current: 140 Arms

Primary Parameters

• Supply Voltage: 18–90 VDC
• Continuous Current: 70 Arms
• Peak Current: 140 Arms

Confirmed Technical Specifications
Supply Voltage: 18–90 VDC
Continuous Current: 70 Arms
Peak Current: 140 Arms

Mechanical Dimensions Reference
Applicable table row: BLAR-50A~85A — dimension units: mm

Control & Performance
Control modes: speed control and torque control
Current-loop sampling: 16 kHz (62.5 μs)
Speed-loop sampling: 2 kHz (500 μs)
Current-loop bandwidth: typically ~1.5 kHz (depends on settings and motor inductance)
Motor compatibility: permanent-magnet BLDC motors with Hall-sensor or sensorless feedback
Feedback options: digital Hall or incremental A/B quadrature encoder (up to 5 Mline/s)

Command & Communication
Speed/torque command: PWM or ±10 V analog command
PWM modes: unipolar 0–100% (selectable polarity) or bipolar 50% ±50%
PWM frequency: 1 kHz–100 kHz; minimum pulse width 220 ns
Analog command: ±10 V, 5 kΩ differential input impedance
RS232: 9,600–115,200 baud (ASCII or binary protocol)
RS485: 9,600–115,200 baud (Modbus RTU)
CAN (optional): 20 kbit/s–1 Mbit/s; CANopen DS-301 V4.02 / DS-402 device profile
LEDs: status and CAN network indication

Digital I/O & Protection
Digital inputs: 6 ports, NPN active-low; configurable functions include enable, external reset, limits, PWM sync, run/stop, high-speed pulse input
Digital outputs: 2 ports, NPN active-low, max. 300 mA / 30 VDC; configurable as fault, brake, PWM sync or user events
Protections: overvoltage, overcurrent, undervoltage, overload, overtemperature, encoder fault, I²t, output short circuit

Operating Conditions
Supply range: 18–90 VDC (135/180 VDC variants on technical page)
Environment: no corrosive or flammable gases
Altitude: below 1,000 m
Ambient temperature: −20 °C to +50 °C
Humidity: 5%–95% RH non‑condensing
Vibration/shock: < 4.9 m/s² / < 19.6 m/s²

J1 — Motor & Main Power
Pin 1/2/3: U / V / W motor phases
Pin 4: 0 V (GND)
Pin 5: DC 20–90 V supply
Protective earth: connect motor PE to protective ground as shown in wiring overview

J2 — Motor Feedback (15‑pin)
Pin 1/2: NTC* / NTC*
Pin 3/4/5/6: U+ / +5 V / 0 V / V+
Pin 7/8: not assigned
Pin 9/10: W+ / not assigned
Pin 11/12: B− / B+
Pin 13/14: A− / A+
Pin 15: IN5* temperature‑control switch
Ordering note: specify NTC resistor input or temperature‑switch option when ordering; switch uses pins 1 and 15

J3 — Control Signals (10‑pin)
Pin 1/2: OUT2 brake (BRK) / OUT1 fault (ERR)
Pin 3: IN2 single‑ended analog direction (F/R)
Pin 4: IN3 (HS) PWM direction (DIR)
Pin 5: IN4 (HS) PWM pulse (PUL)
Pin 6: IN1 enable (EN)
Pin 7/8: +5 V output / GND
Pin 9/10: AREF− / AREF+ analog reference
Single‑ended wiring: AREF− = 0 V; AREF+ = 0–10 V
Differential wiring: AREF− = −10 V; AREF+ = +10 V

J4 / J5 — RS485 & CAN (optional)
Pin 1: 485A (CAN_H optional)
Pin 2: 485A (CAN_H optional)
Pin 3/4: GND_C / GND_C
Pin 5/6: 485B (CAN_L optional) / 485B (CAN_L optional)
Note: CAN signal names in parentheses are optional per technical page

J6 RS232 Debug & J7 Auxiliary Power
J6 pin 1/2: No Conn / RxD
J6 pin 3/4: Signal ground / Signal ground
J6 pin 5/6: TxD / No Conn
J7 GND: 0 V
J7 +AUXHV: +24 V or main supply voltage

Wiring & Diagrams
Wiring diagram, connector pinouts, mechanical drawings and outline dimensions are provided in product imagery and technical documentation for installation reference.

Technical specifications

• Model: BLAR-09070-MH
• Supply voltage: 18–90 VDC (135 / 180 VDC variants noted)
• Continuous current: 70 Arms
• Peak current: 140 Arms
• Control modes: speed control, torque control
• Current-loop sampling: 16 kHz (62.5 μs)
• Speed-loop sampling: 2 kHz (500 μs)
• Feedback: digital Hall or incremental encoder, up to 5 Mline/s
• Commands: PWM or ±10 V analog; PWM 1 kHz–100 kHz; min pulse 220 ns
• Communications: RS232, RS485 (Modbus RTU), optional CAN (CANopen DS-301/DS-402)
• Digital I/O: 6 inputs (NPN active-low), 2 outputs (NPN active-low, max. 300 mA / 30 VDC)
• Protections: overvoltage, overcurrent, undervoltage, overload, overtemperature, encoder fault, I²t, output short circuit
• Operating ambients: −20 °C to +50 °C; 5%–95% RH non‑condensing
