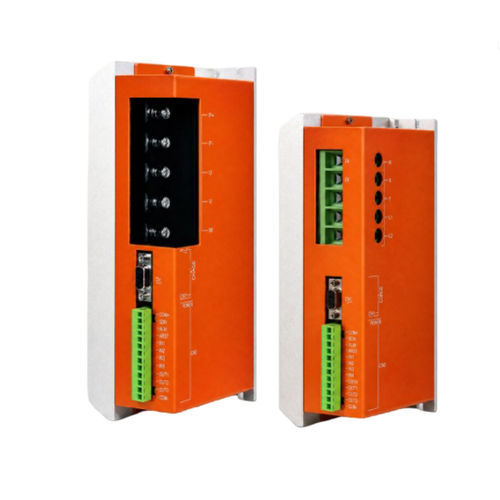

Brushless DC drive BLAR-090210-MH-MD

permanent magnetdigitalhigh-performance

Product overview
The BLAR series is an industrial high-performance intelligent digital brushless DC drive family combining positioning control and motor-drive functions in a single unit. The BLAR-090210-MH-MD is intended for speed and torque control of permanent-magnet brushless motors (Hall-sensor or sensorless) and supports system integration when supply, feedback and installation conditions are confirmed.

KEY HIGHLIGHTS

• Supply voltage: 18–90 VDC (variants to 135/180 VDC available)
• Continuous current: 210 Arms
• Peak current: 300 Arms

Quick specifications
Supply Voltage — 18–90 VDC
Continuous Current — 210 Arms
Peak Current — 300 Arms
Power Capability — up to 15 kW (series capability)

Control & performance
Control Modes — Speed control and torque control
Current-loop sampling — 16 kHz (62.5 μs)
Speed-loop sampling — 2 kHz (500 μs)
Current-loop bandwidth — typically ~1.5 kHz (depends on settings and motor inductance)
Motor Compatibility — PM BLDC with Hall-sensor or sensorless feedback
Feedback Options — Digital Hall or incremental A/B quadrature encoder (up to 5 Mline/s)

Command & communication
Speed/Torque Command — PWM or ±10 V analog
PWM — unipolar 0–100% (selectable polarity) or bipolar 50% ±50%
PWM Frequency — 1 kHz–100 kHz; minimum pulse 220 ns
Analog Input — ±10 V (5 kΩ differential)
RS232 — 9,600–115,200 baud (ASCII or binary)
RS485 — 9,600–115,200 baud (Modbus RTU)
CAN (optional) — 20 kbit/s–1 Mbit/s; CANopen DS-301/DS-402

Digital I/O & protection
Digital Inputs — 6 ports (NPN, active-low); configurable for enable, reset, limits, PWM sync, run/stop, high-speed pulse
Digital Outputs — 2 ports (NPN, active-low); max 300 mA / 30 VDC; configurable as fault, brake, sync, user events
Protection — Overvoltage, overcurrent, undervoltage, overload, overtemperature, encoder fault, I²t, output short circuit

Operating conditions
Supply Range — 18–90 VDC (135/180 VDC variants noted in technical page)
Environment — No corrosive or flammable gases; installation altitude below 1,000 m
Ambient Temperature — −20 °C to +50 °C
Humidity — 5%–95% RH non-condensing
Vibration / Shock — < 4.9 m/s² / < 19.6 m/s²

Connector summary (key pins)
J1 Motor & Main Power — Pins 1/2/3: U/V/W; Pin 4: 0 V; Pin 5: DC 20–90 V; Protective Earth — connect motor PE
J2 Motor Feedback (15-pin) — encoder A+/A-, B+/B-, W+/W-, +5 V, 0 V, NTC or temp-switch option (pins 1/15)
J3 Control Signals (10-pin) — OUT2 brake, OUT1 fault, IN1 enable, IN2 analog direction, IN3/IN4 PWM direction/pulse, +5 V / GND, AREF-/AREF+
J4/J5 RS485 & CAN (optional) — 485A/485B and optional CAN_H/CAN_L; GND_C pins provided
J6 RS232 debug & J7 auxiliary power — RxD/TxD/Signal GND and +AUXHV (+24 V or main supply)

Additional resources
Wiring diagram, connector diagrams, mechanical drawing and outline dimensions are provided in the technical documentation.

Technical specifications

• Model: BLAR-090210-MH-MD
• Series: BLAR Series Intelligent Brushless Drive
• Supply voltage: 18–90 VDC (variants to 135/180 VDC)
• Continuous current: 210 Arms
• Peak current: 300 Arms
• Power capability: up to 15 kW (series capability)
• Control modes: speed control, torque control
• Feedback: Digital Hall or incremental A/B encoder; up to 5 Mline/s
• Communications: RS232, RS485 (Modbus RTU), optional CAN (CANopen)
• Digital I/O: 6 inputs (NPN active-low), 2 outputs (NPN active-low)
• Protection: overvoltage, overcurrent, undervoltage, overload, overtemperature, encoder fault, I²t, short circuit
• Operating temperature: −20 °C to +50 °C
• Humidity: 5%–95% RH, non-condensing
