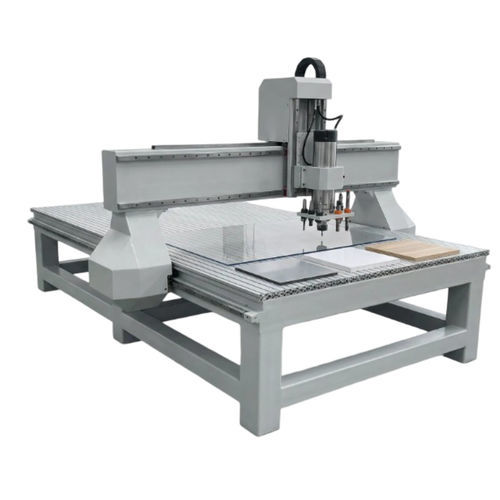

Wood-processing machine CNC control card CSS-001

packaging machine4-axis3-axis

Product Overview
The Intelligent Edge‑Tracing CNC Controller is a fully integrated motion control system designed for advertising sign fabrication and woodworking CNC applications. It combines a PCIe motion control card, a CCD vision module and dedicated edge‑tracing software to automatically detect printed registration marks, compensate for material stretch and rotation, and execute precision cutting or engraving paths within a single control platform.

Key Highlights

• Dual‑mode operation: standard CNC routing and vision‑guided edge‑tracing in one system
• CCD camera auto‑calibration with ≤ 0.1 mm positioning accuracy
• Automatic compensation for printed material stretch and rotation distortion
• PCIe bus interface for stable, drop‑free communication during long production runs
• Supports vibrating knife, drag knife, and spindle cutting tools
• Manual fallback mode when auto mark detection fails (prevents production stoppage)

System Architecture
Control Axes — 3‑Axis (XYZ) standard; 4‑Axis (XYZ+U) with vibrating knife module
Positioning Accuracy — ≤ 0.1 mm
I/O Terminals — 40 terminals total
Bus Interface — PCIe (stable, no‑dropout communication)
Vision System — CCD camera with auto‑calibration
Supported Modes — Standard routing / Edge‑tracing / Vibrating knife
Power Supply — 24V DC
Host Interface — PCIe slot (compatible with standard industrial PCs)

I/O Port Map
COM (Pin 1 / 16 / 17) — Common ground
24V (Pin 3) — 24V power input
SVC (Pin 5) — VFD analog output 0‑10V
SPIN (Pin 7) — Spindle on/off control
SPCOOL (Pin 9) — Coolant on/off control
OIL (Pin 11) — Lubrication on/off control
X0 / Y0 / Z0 (Pin 20 / 19 / 18) — Axis home sensors
ESTOP (Pin 40) — Emergency stop input
START / STOP (Pin 38 / 37) — Cycle start / stop
XD± / YD± / ZD± (Right side) — Stepper motor pulse/direction outputs

Key Capabilities

• Registration Mark Detection — Automatic CCD capture with manual fallback option
• Distortion Compensation — Stretch and rotation correction for printed materials
• Camera Calibration — One‑click auto‑calibration and camera‑to‑spindle offset measurement
• File Format — Supports standard CNC engraving file formats
• Knife Orientation Control — U‑axis synchronization for vibrating/drag knife operations
• Special Tool Support — Configurable parameters for pressure knife, drag knife and vibrating knife

Application Domains

• Advertising & Signage — Automated cutting of vinyl, foam board and reflective film with CCD mark registration
• Woodworking & Furniture — Engraving and contour cutting on MDF, plywood and solid wood panels
• Packaging & Corrugated — Sample box cutting and crease‑line machining with vision compensation for print‑to‑cut registration
• Textile & Leather — Drag‑knife and vibrating‑knife cutting of leather, fabric and synthetics with maintained knife orientation
• Automotive Interior — Precision cutting of trim, seat panels and carpet inserts with distortion compensation
• OEM Machine Builder — Drop‑in PCIe control card and software bundle to add vision‑guided cutting to existing CNC platforms

Customization & OEM Notes
Solution Type — Custom OEM: designed to customer application requirements
Typical Lead Time — Varies by project
Minimum Order — No minimum: single‑unit prototype to volume production
Documentation — Full system manual, wiring diagram, software package and camera calibration guide provided
Industries Served — Advertising signage, woodworking, packaging, textile cutting, automotive interior, leather goods
OEM Experience — 30+ years manufacturing experience; 1800+ industrial OEM clients across North America, Europe and Southeast Asia

Specifications

• Control Axes: 3‑Axis (XYZ) standard; optional 4‑Axis (XYZ+U) for vibrating knife
• Positioning Accuracy: ≤ 0.1 mm
• I/O Ports: 40 terminals (including COM, 24V input, SVC, SPIN, SPCOOL, OIL, axis home sensors, ESTOP, START/STOP, stepper outputs)
• Bus Interface: PCIe (stable, no‑dropout communication)
• Vision System: CCD camera with one‑click auto‑calibration and camera‑to‑spindle offset measurement
• Supported Modes: Routing, Edge‑Tracing, Vibrating Knife
• Power Supply: 24V DC
• Host Interface: PCIe slot compatibility with standard industrial PCs
• File Support: Standard CNC engraving file formats
• Knife Control: U‑axis synchronization for vibrating/drag knife; supports pressure, drag and vibrating knives
• Registration & Compensation: Automatic registration mark detection with manual fallback; stretch and rotation distortion compensation for printed materials
