Overview

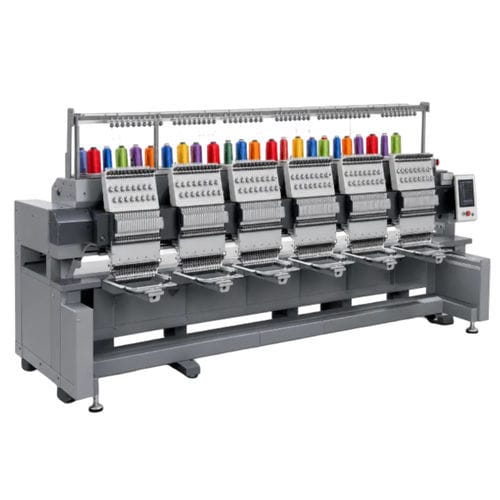

DAHAO Technology (Beijing DAHAO Technology Corp., Ltd., SSE: 603025) is the world's leading manufacturer of embroidery machine electronic control systems. Its BECS series controllers hold an estimated ~70% global market share and are installed in virtually every major embroidery machine brand worldwide. The BECS platform delivers precise stitch control, fast color-change sequencing, multi-head synchronization, and a comprehensive HMI ecosystem for commercial embroidery production. NEOTON is a qualified OEM motor supplier to DAHAO Technology, supplying stepper and BLDC motors that meet DAHAO's interface and quality specifications for integration into the BECS controller platform. NEOTON can supply customized motors (frame size, winding, connector, cable configuration) for embroidery machine OEMs at volume production scale.

Key Highlights

• DAHAO BECS: industry-standard embroidery controller platform with ~70% global market share; widely installed across major embroidery machine brands
• BECS delivers precise stitch control, fast color-change sequencing, multi-head synchronization, and a full HMI ecosystem for commercial embroidery production
• NEOTON is a qualified OEM motor supplier to DAHAO Technology; motors meet DAHAO interface and quality specifications
• Motor customization available: frame size, winding voltage, connector pinout, cable type and length, encoder feedback
• Volume production supply with consistent batch-to-batch parameter uniformity; no minimum order from evaluation samples to full production runs

Summary Parameters
Controller Platform: DAHAO BECS series (world No.1 embroidery controller, ~70% global share)
Max Spindle Speed: 1,500 RPM (flat embroidery) / 1,200 RPM (towel embroidery)
Max Heads Supported: Up to 480 heads
Memory Capacity: 100 million stitches; up to 800 stored patterns per system
Color Changes: Up to 5,000 color-change sequences per pattern
HMI: 15″–17″ HD touch screen; 8–23 language options

About DAHAO Technology & the BECS Platform
Company: Beijing DAHAO Technology Corp., Ltd. (SSE: 603025) — founded 1994, headquartered in Beijing
Market Position: No.1 globally in embroidery machine electronic control systems; BECS series estimated ~70% global market share
Installed Base: BECS controllers are installed in virtually every major embroidery machine brand worldwide
Product Line: BECS series covers flat-bed multi-head embroidery, cap embroidery, sequin embroidery, towel combination embroidery, and special-purpose machines
Industry Role: BECS has become the de facto industry standard for commercial embroidery machine control

BECS Platform Key Specifications
Max Spindle Speed — 1,500 RPM (flat embroidery) / 1,200 RPM (towel embroidery)
Max Heads Supported — Up to 480 heads (extended power supply box for 80+ head machines)
Memory Capacity — 100 million stitches; up to 800 stored patterns per system
Max Stitches per Pattern — 50 million stitches
Color Changes — Up to 5,000 color-change sequences per pattern
HMI — 15″–17″ HD LCD touch screen; resolution up to 1280×1024; 8–23 language options
Power Supply — Single-phase 185–285VAC; all-digital switching power supply; overvoltage protection
EMC Performance — Anti-interference capability nearly 100% above industrial standard
Thread Break Detection — Digital / intelligent thread breakage detection
Special Embroidery — Sequin, cording, bead, laser, hot-cut, taping, towel combination, chain-stitch and more
Multi-Task Operation — Pattern editing and parameter adjustment during active embroidery

NEOTON's Role as OEM Motor Supplier
Supplier Relationship — NEOTON is a qualified OEM motor supplier to DAHAO Technology, supplying stepper and BLDC motors that meet DAHAO's interface and quality specifications
Motor Types — Stepper motors and BLDC motors; specific types and specifications per DAHAO platform requirements
Quality Standard — Motors supplied to DAHAO's electrical interface specification, connector standard, and cable requirements
Supply Scale — Volume production supply with consistent batch-to-batch parameter uniformity

OEM & Customization for Other Embroidery Machine Manufacturers
Who This Is For — Any embroidery machine OEM that needs a reliable, customizable motor supply (whether using DAHAO BECS or another controller platform)
Motor Customization — Frame size, winding voltage, connector pinout, cable type and length, encoder feedback — all matched to your controller interface and machine design
Interface Support — NEOTON engineers review controller motor drive specifications and confirm or adapt the motor interface to match requirements
Integration Support — Engineering support throughout the integration process; on-site commissioning available as required
Minimum Order — No minimum: single-unit evaluation samples to full volume production batches
Lead Time — Depends on motor specification and production volume (timeline provided per project requirements)
OEM Experience — 30+ years motor manufacturing; supply experience with major industrial controller platforms across textile, packaging, and automation sectors

Technical characteristics / specifications

• Controller Platform: DAHAO BECS series
• Max Spindle Speed: 1,500 RPM (flat) / 1,200 RPM (towel)
• Max Heads Supported: Up to 480 heads
• Memory Capacity: 100M stitches; up to 800 stored patterns
• Max Stitches per Pattern: 50M stitches
• Color Changes: Up to 5,000 sequences per pattern
• HMI: 15″–17″ HD LCD touch screen; up to 1280×1024 resolution; 8–23 languages
• Power Supply: Single-phase 185–285VAC; all-digital switching PSU; overvoltage protection
• EMC Performance: Anti-interference capability well above industrial standard
• Thread Break Detection: Digital / intelligent detection
• Supported Special Embroidery Modes: Sequin, cording, bead, laser, hot-cut, taping, towel combination, chain-stitch, etc.
• Motor Types Supported: Stepper and BLDC motors (customizable)
• Motor Customization Options: Frame size, winding, connector pinout, cable type and length, encoder feedback
• Supply: Volume production with consistent batch uniformity; no minimum order
