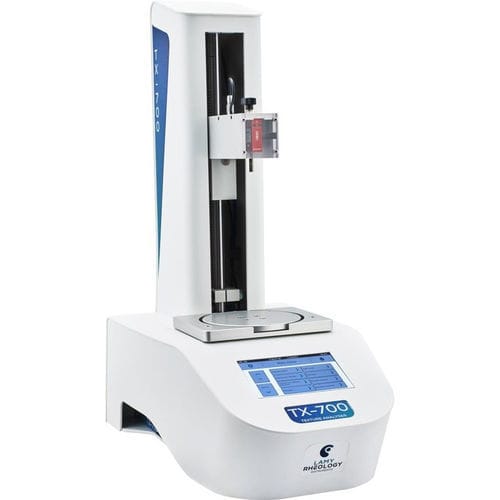

With its wide range of probes and cells, the TX 700 is the ideal tool for your texture analysis. Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX 700 will integrate in laboratory and production area.
Specifications
Type of instrument:Texture Analyzer operating in compression and Traction
Speed range : From 0.1 to 100m/s +/- 0.2%
Choice of sensors -
10 N (1kg), resolution 0,001 N (0,1 g)
20 N (2kg), resolution 0,001 N (0,1 g)
50 N (5kg), resolution 0,001 N (0,1 g)
250 N (20kg), resolution 0,001 N (1g)
500 N (50kg), resolution 0,001 N (1g)
Temperature:The TX-700 has a PT 100 sensor to measure your sample´s temperature from -50ºC to +300ºC.
Accuracy : - +/- 0.05 % of the full scale
Language: - French, Englis, Russian, Spanish
Display:7" Touch screen
Display Settings:Force| Speed | Distance| Temperature| Time | Choice of force units: gram or Newton
Security and Confidentiality :An "operator" function allows you to enter a username for your instrument.
This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions.
Supply Voltage: - 90-240 VAC 50/60 Hz
Printerconnection:USB Host Port
PC connections:RS232 Port and USB
Compatible accessories:All probes and cell
Dimensions and weight : -
D610 x W340 x H650mm
Weight: 22 kg
