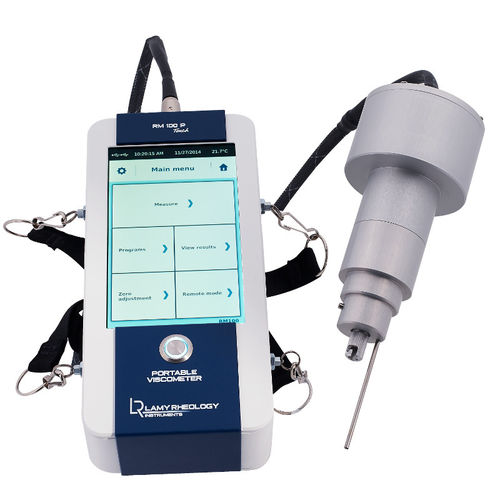

No matter where, the PORTABLE RM 100 allows you to bring your viscosity measurement methods where your lab can not operate. With programming, memorization, temperature measurement and all measurement systems, all your expertise is moving!
Specifications
Type of instrument:Rotating viscometer
Speed range : Unlimited number of speeds between 0.3 and 1500 rpm
Torque Range :From 0.05 to 30 mNm
TemperatureThe Portable RM 100 has a PT100 sensor which indicates temperatures between -50ºC to +300ºC.
Accuracy : - +/- 1 % of the full scale
Repeatability:+/- 0,2 %
Language: - French, Englis, Russian, Spanish
Display:7" Touch screen
Display Settings:Viscosity | Speed | Torque | Temperature| charge level indication| Choice of viscosity units: cP or mPa·s
Security and Confidentiality :An "operator" function allows you to enter a username for your instrument.
This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions.
Supply Voltage: - 90-240 VAC 50/60 Hz
Analog output:4-20 mA
PC connections:RS232 Port and USB
Compatible measuring system:MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS ULV, MS SV
Compatible temperature control:EVA DIN, EVA MS-R, EVA LR-BV, RT1
Dimensions and weight : -
Head: Ø85
Height: 310mm
Box: L265 x W125 x H65 mm
Weight: 2 kg
