Helical servo-gearbox ADR90right anglehollow-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- helical
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm
- Number of stages
- single-stage, multi-stage
- Performance
- high-precision, high-torque, maintenance-free, low-noise, high-efficiency, high-speed
- Applications
- for servo motors, for machines, for conveyors, for industrial applications, machine
- Other characteristics
- compact, flange, high-quality, custom, cutting, rugged
- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)2,000 rpm
(12,566.37 rad.min-1)Min.: 2 rpm
(12.57 rad.min-1)- Power
Max.: 1,500 W
(2.04 hp)800 W
(1.09 hp)Min.: 250 W
(0.34 hp)
Description

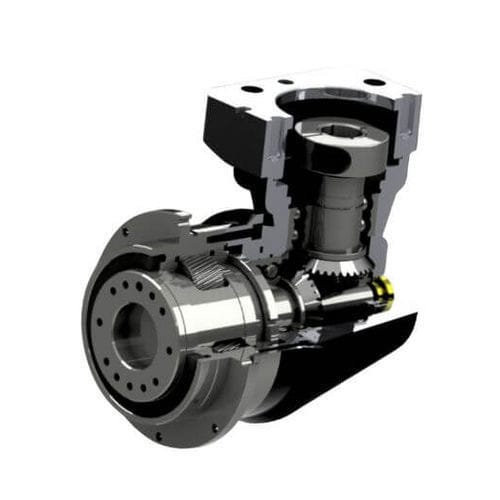

ADR Series is our planetary gearbox with compact flange output shaft. You save more than a third of the space and benefit from a torsional stiffness that is five times higher than conventional products. Due to its standardized flange interface, it is especially easy to install. The integrated dowel hole provides additional secureness during fitting.
Frame Size - 64mm, 75mm, 100mm, 140mm, 200mm, 255mm, 285mm
Output Torque - 42Nm-4702Nm
Ratio 1 stage - 3,4,5,6,7,8,9,10
Ratio 2 stage - 12,15,16,20,25,28,30,35,40,45,50
Ratio 3 stage - 48,60,75,80,100,120,125,180,200,256,320,512
Backlash 1 stage - P0<2 arc-min P1<3arc-min P2<5 arc-min
Backlash 2 stage - P0<3 arc-min P1<5 arc-min P2<7 arc-min
Backlash 3 stage - P0<5 arc-min P1<7 arc-min P2<9 arc-min
