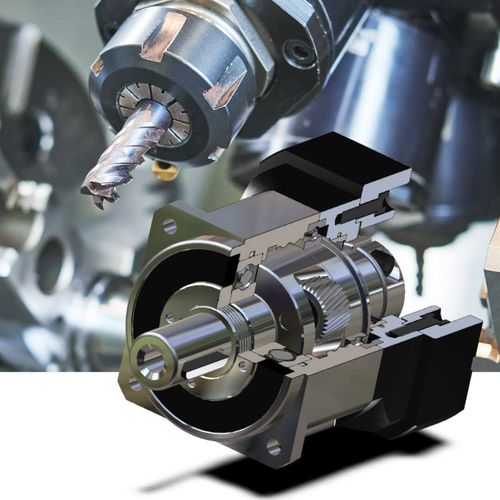

Helical servo-gearbox AB90
planetarycoaxialsolid-shaft

helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary, helical
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
100 - 200 Nm
Number of stages
single-stage, multi-stage
Performance
high-precision, low-backlash, high-performance, maintenance-free, high-torque, high-rigidity, low-noise, high-efficiency, high-speed, high load capacity
Applications
for marine applications, for servo motors, transmission, machine, for machines, for industrial applications, for agricultural machinery, for conveyors, for vehicles, for automation, for rack-and-pinion drives, shaft, for stepper motors
Other characteristics
high-quality, compact, IP65, flange, industrial, for robotics, rugged, modular, for machine tools, custom, cutting, for DC motors, miniature
Backlash

Min.: 0.05 °

Max.: 0.15 °

Gear ratio

Min.: 3 unit

Max.: 320 unit

Description

AB Series is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance at high speeds. Its helical teeth provide homogeneous synchronism and quiet running noise. Quiet and powerful high output torque universal mounting positions simple motor mounting permanent lubrication Helical gear High percision Frame Size - 42mm, 60mm, 90mm, 115mm, 142mm, 180mm, 220mm Output Torque - 14Nm-2567Nm Ratio 1 stage - 3,4,5,6,7,8,9,10 Ratio 2 stage - 12,15,16,20,25,28,30,35,40,45,50 Ratio 3 stage - 48,60,75,80,100,120,125,180,200,256,320,512 Backlash 1 stage - P0<2 arc-min P1<3arc-min P2<5 arc-min Backlash 2 stage - P0<3 arc-min P1<5 arc-min P2<7 arc-min Backlash 3 stage - P0<5 arc-min P1<7 arc-min P2<9 arc-min
