Right angle gearbox ABR90
helical gearsolid-shaftflange-mounted

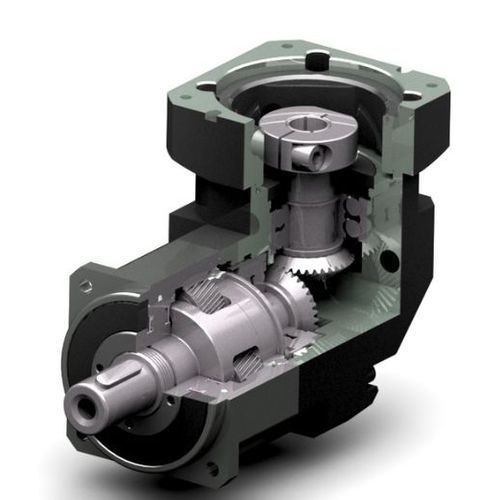

Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 2
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 3
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 4
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 5
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 6
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 7
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 8
Right angle gearbox - ABR90 - Newstart Planetary Gear Boxes Co.,Ltd. - helical gear / solid-shaft / flange-mounted - image - 9
Add to favorites
Compare this product

Characteristics

Type
helical gear
Shaft orientation
right angle
Shaft configuration
solid-shaft
Mounting
flange-mounted
Configuration
compact, modular
Number of stages
single-stage, two-stage, three-stage
Performance
precision, maintenance-free, low-backlash, high load capacity
Applications
for industrial applications, for textiles, for servo motors, for medical applications, for the food industry, for pharmaceutical products
Other characteristics
high-quality
Rotational speed

3,000 rpm, 6,000 rpm
(18,849.5559 rad.min-1, 37,699.1118 rad.min-1)

Gear ratio

Min.: 3 unit

Max.: 320 unit

Weight

Min.: 5.4 kg
(11.9 lb)

Max.: 6.5 kg
(14.33 lb)

Description

ABR Precision Right Angle Gearbox, designed for space efficiency with a compact right-angle structure. Crafted from high-quality 40Cr steel, it ensures superior strength and durability. The true hardened helical gears, made from premium 20CrMnTi alloy steel, offer exceptional performance with an HRC62 hardness. Ideal for applications with limited space, it maintains the same reliability, precision, and excellence found in our planetary gearbox series, making it the optimal solution for constrained installations. Features: Frame size from 42mm to 220mm Standard Torque Capacity up to 2560N.m Any mount positions

Catalogs

No catalogs are available for this product.

See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogs

Other Newstart Planetary Gear Boxes Co.,Ltd. products

ABR Precision Right Angle Gearbox
