Planetary gearbox PF80
coaxialsolid-shaft50 - 100 Nm

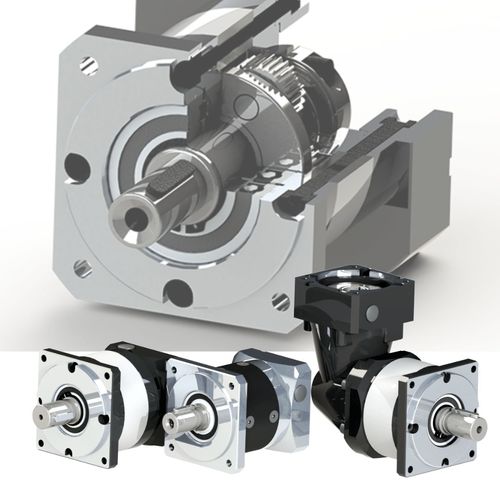

Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 2
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 3
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 4
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 5
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 6
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 7
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 8
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 9
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 10
Planetary gearbox - PF80 - Newstart Planetary Gear Boxes Co.,Ltd. - coaxial / solid-shaft / 50 - 100 Nm - image - 11
Add to favorites
Compare this product

Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
50 - 100 Nm
Mounting
flange-mounted
Configuration
compact, flange, modular
Number of stages
single-stage, two-stage, three-stage
Performance
precision, low-backlash, maintenance-free, high load capacity
Applications
transmission, for industrial applications, for textiles, for the food industry, for pharmaceutical products, for automation, packaging machine, for medical applications
Other characteristics
rugged
Rotational speed

3,000 rpm, 6,000 rpm
(18,849.5559 rad.min-1, 37,699.1118 rad.min-1)

Gear ratio

Min.: 3 unit

Max.: 512 unit

Weight

Min.: 2.6 kg
(5.73 lb)

Max.: 4.3 kg
(9.48 lb)

Description

PF Series Compact Planetary Gearboxes offer a perfect blend of precision and affordability. Featuring hardened spur gears optimized through advanced 3D simulation technology, these gearboxes deliver exceptional performance in a compact form factor. Each gear is meticulously ground to achieve low backlash, ensuring smooth and accurate motion transmission. As our most economical series, PF compact planetary gearboxes are ideal for applications requiring precise transmission in limited spaces, such as CNC, automation equipment, and medical devices. With their robust design and versatile mounting options, including flange and shaft output, these gearboxes provide reliable power transmission solutions for various industrial needs. Features: Frame size from 40mm to 215mm Modularized designed for any servo and stepper motors Backlash as low as to 8 arcmin Standard Torque Capacity up to 1780N.m Low heat generation Any mount positions Grease lubrication lifetime free-maintenance Medium radial and axial load capacity
