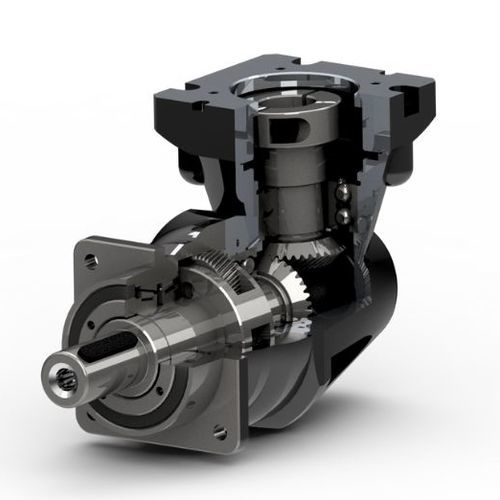

Planetary servo-gearbox AFR60helicalright anglesolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 50 - 100 Nm, 20 - 50 Nm
- Number of stages
- single-stage, multi-stage
- Performance
- high-performance, precision, low-backlash, maintenance-free, high-torque, high-efficiency, high-rigidity, low-noise, high-speed, high-capacity, high load capacity
- Applications
- for machines, for servo motors, transmission, machine, for agricultural machinery, for industrial applications, for automation, for conveyors, shaft, for pharmaceutical products, for valves, for rack-and-pinion drives, for vehicles, for marine applications, for stepper motors
- Other characteristics
- flange, compact, high-quality, combined, vertical output shaft, rugged, industrial, custom, double, cutting, IP65, for machine tools, modular, miniature, for robotics
- Rotational speed
Max.: 6,000 rpm
(37,699.11 rad.min-1)3,000 rpm
(18,849.56 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Backlash
Max.: 0.15 °
0.05 °
Min.: 0.05 °
- Gear ratio
Max.: 320 unit
8 unit
Min.: 3 unit
Description
AFR Series, a redesigned right angle planetary gearbox for space optimization. Featuring a compact structure with a flange output and integrated nut, it ensures efficient performance in limited spaces. The design retains heavy-duty tapered roller bearings, enhancing torsional rigidity and load-bearing capabilities. Crafted with true hardened helical gears from premium 20CrMnTi alloy steel and employing 3D simulation for noise reduction, the AFR Series combines superior strength with a space-conscious design. Ideal for applications requiring a right-angle structure, it sets new standards for compact and high-performance planetary
Catalogs
No catalogs are available for this product.
See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogsOther Newstart Planetary Gear Boxes Co.,Ltd. products
AF/AFR Series Planetary Gearbox
