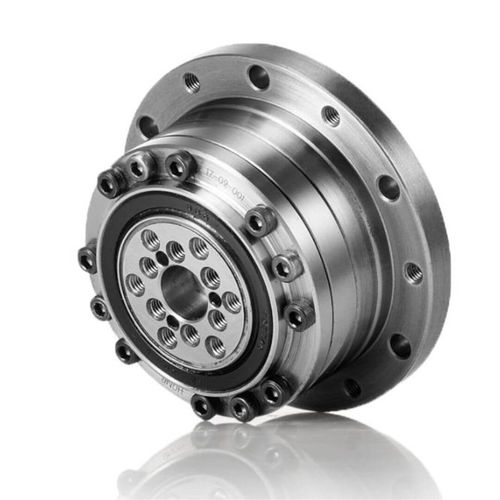

Strain wave servo-gearbox NS-CS seriesharmoniccoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave, harmonic
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 100 - 200 Nm, 20 - 50 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, 10 - 20 Nm, 5 - 10 kNm
- Number of stages
- single-stage, multi-stage
- Performance
- low-backlash, precision, high-performance, maintenance-free, high load capacity, high-torque, high-efficiency, high-rigidity, low-noise, high-speed, high-capacity, zero-backlash
- Applications
- for servo motors, transmission, machine, for industrial applications, for machines, for automation
- Other characteristics
- compact, high-quality, custom, for machine tools, modular, for robotics, vertical output shaft, miniature, IP65
- Backlash
Max.: 0.01 °
Min.: 0 °
- Gear ratio
50 unit, 80 unit, 100 unit, 120 unit
Description
The Strain Wave Gear (harmonic) is a transmission that relies on a wave generator to generate controllable elastic deformation waves in flexible gears to achieve motion and power transmission. mainly to solve the urgent need of aerospace, robotic, and some special application motion agencies for reducers with compact structures, lightweight, small size, large reduction ratio, high transmission efficiency, and high transmission precision. we have successfully developed hundreds of Strain Wave Gear of different specifications and models, covering the intelligent manufacturing industry and meeting applications in different markets and fields such as aerospace, and industrial robots.
NS-CS standard strain wave gear, the input shaft matches with the inner of the cam and is connected by a flat key.
