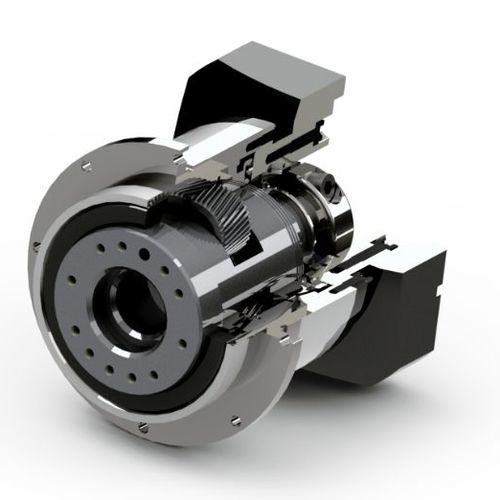

Planetary gearbox AD serieshelical gearcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, low-backlash, high load capacity
- Applications
- for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Rotational speed
Max.: 8,000 rpm
(50,265.4825 rad.min-1)Min.: 1,000 rpm
(6,283.1853 rad.min-1)- Gear ratio
Max.: 320 unit
Min.: 3 unit
- Weight
Max.: 110 kg
(242.51 lb)Min.: 0.6 kg
(1.32 lb)
Description

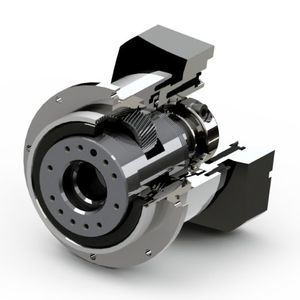

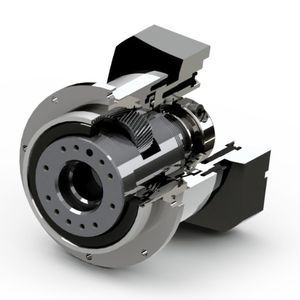

AD series Precision Inline Planetary Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with Roller bearings supported on each end taken large axial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
Features:
Frame size from 47mm to 255mm
Standard Torque Capacity up to 2560N.m
Any mount positions
Flange shaft output
