optical profilometer / laser / geometry / for brake discs
C41/C42

{{requestButtons}}

Characteristics

  • Technology:

    optical, laser

  • Function:

    geometry

  • Applications:

    for brake discs, for railway wheels

  • Configuration:

    portable

  • Other characteristics:

    non-contact

Description

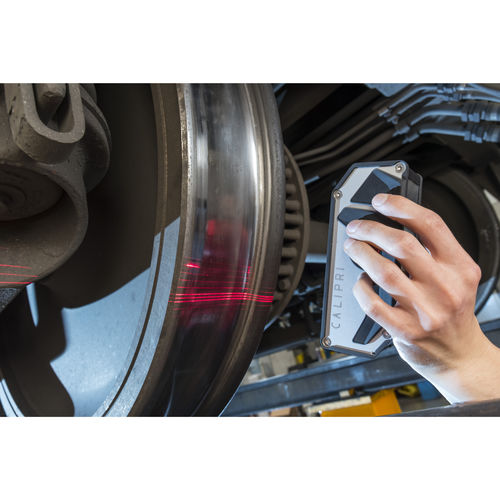

The non-contact Calipri C4x series with rolling stock measurement modules meets the rail industry's need for a simple profile gauge with user-independent results for complete wheelset testing.

CALIPRI stands for multifunctionality all along the line. The non-contact measuring technology allows the inspection of wheel profile, wheel diameter, brake disc and back-to-back distance with one and the same measuring device. The patented CALIPRI principle automatically corrects user errors and thus leads to reproducible measurement results. The measuring system consists of a sensor and a tablet PC for defining the measuring sequence and entering limit values. Tolerances that are exceeded are indicated to the user by a traffic light system. The measurement data can then be printed or exported as a report.

Two versions are available: Calipri C42 for heavy rail vehicles and Calipri C41 for light rail vehicles.
