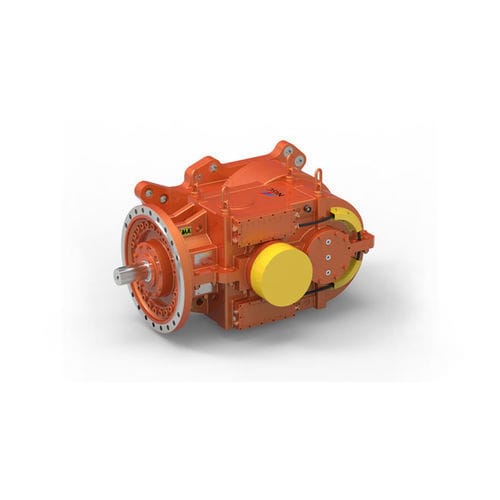

Planetary gearbox

bevelcylindricalcoaxial

Chain conveyor gearboxes of JS Series are especially suitable for underground coal mines and other similar poor working conditions. The chain conveyor gearbox can be used with inclination angles up to 30°. The large-power chain conveyor gearbox is lubricated by an oil pump to ensure safe lubrication on inclines. This gearbox can be installed horizontally, using a three-level structure of bevel, cylindrical and planetary gear. Vertical installation is achieved by using a two-level planetary gear structure. NGC offers a customized design for the chain conveyor gearbox. Characteristics Special design for different applications Compact design; large bearing capacity Tooth surface modification; large teeth contact ratio Smooth transmission; low noise Special shaft seal design Critical load test to ensure high gearbox reliability Design of large inclination and walking angle Main Technical Parameters Product Group: JS Speed Ratio: 3.5–40 Applications Flexible chain conveyors, loaders, crusher
