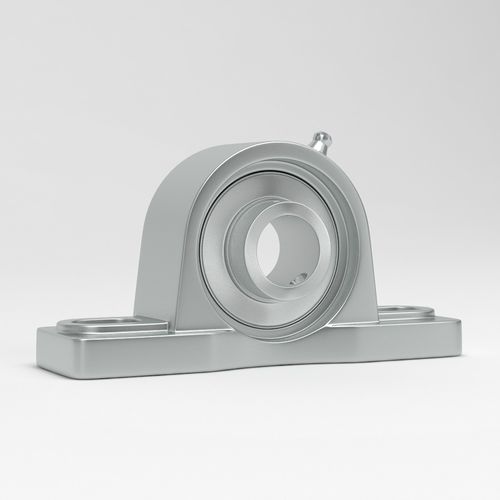

Pillow bearing unit SP seriesstainless steelrubberNBR
Add to favorites
Compare this product
Characteristics
- Type
- pillow
- Material
- stainless steel, stainless, rubber, NBR
- Other characteristics
- lubricated
- Applications
- for the food industry
- Inside diameter
Min.: 20 mm
(0.79 in)Max.: 90 mm
(3.54 in)
Description
The stainless steel pillow block bearing units type SP is suitable for the food industry and other demanding environments, due to the hygienic design and minimum of maintenance.
The stainless steel bearing units are characterized by high quality and finish for both the bearing and the bearing housing.
Pillow block Unit SP in stainless steel advantages.
The bearing unit has adjustable pre-lubricated Aisi440C stainless steel ball bearing.
The bearing can be re-lubricated by stainless steel Aisi304 grease-nipple or a quick coupler.
Pillow block Unit SP in stainless steel features.
Stainless steel housings AISI 304
Stainless steel bearings AISI 440C (pre-lubricated)
Stainless steel grease nipples AISI304 M6x1mm
No surface coating are required
Excellent life span
Operating temperature from -30°C to +120°C.
Cap material: Polypropylene or Stainless steel AISI 304
Oil seal material: NBR Rubber with stainless spring
