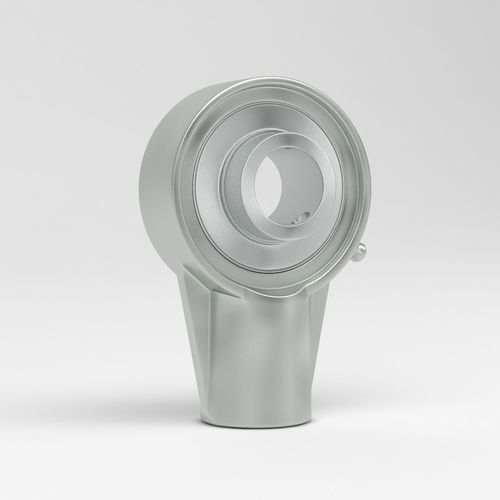

Ball bearing bearing unit SHA

polypropylenenitrile rubberstainless steel

Product overview
The stainless steel hanger bearing units SHA series are designed for suspended shaft support in conveyor and material handling systems, providing a hygienic design and low maintenance for food, pharmaceutical and other demanding industries.

Advantages
The units include an adjustable, pre-lubricated AISI 440C stainless steel ball bearing. Bearings can be re-lubricated via an AISI 304 stainless steel grease nipple or a quick coupler. Units accept a safety cap in polypropylene or AISI 304 stainless steel. Optionally available: a rotary shaft seal ring (TC) with extra dust lip in NBR rubber and a stainless steel spring.

Features

• Housing: stainless steel AISI 304 (AISI 316 optional)
• Bearing: AISI 440C stainless steel, pre-lubricated and adjustable
• Grease nipple: stainless steel AISI 304, M6x1 mm
• No surface coating required; polished finish for hygiene
• Long service life
• Operating temperature: -30°C to +120°C
• Cover: polypropylene or stainless steel AISI 304
• Oil seal: NBR rubber with stainless steel spring

Sizes available (table)
Shaft Diameter | Catalog No.
Ø20 mm | SHA 204
Ø25 mm | SHA 205
Ø30 mm | SHA 206
Ø35 mm | SHA 207
Ø40 mm | SHA 208
Ø45 mm | SHA 209
Ø50 mm | SHA 210
Ø55 mm | SHA 211
Ø60 mm | SHA 212

Usage
The SHA mounted hanger bearing unit supports suspended shafts in conveyors and material handling equipment. It ensures smooth shaft rotation, reduces friction and improves load distribution for long shaft spans and continuous operation.

Industries

• Food processing — for screw conveyors and auger systems; resistant to high-pressure washdowns
• Pharmaceutical — for sterile material handling and cleanroom use
• Beverage — for conveyor systems in bottling and canning lines
• Chemical — for bulk material transport and mixing systems exposed to aggressive chemicals

Material & Construction
Constructed from AISI 304 (AISI 316 optional) stainless steel with smooth, polished surfaces to meet hygienic standards (EHEDG, 3A). Units can be fitted with food-grade seals and high-performance stainless steel bearings to ensure corrosion resistance and reliable operation.

Caractéristiques / spécifications techniques

• Model series: SHA
• Housing material: AISI 304 (AISI 316 optional)
• Bearing material: AISI 440C stainless steel (pre-lubricated, adjustable)
• Grease nipple: AISI 304, M6x1 mm
• Seal options: rotary shaft seal ring (TC) with extra dust lip in NBR and stainless spring
• Cover options: polypropylene or stainless steel AISI 304
• Operating temperature: -30°C to +120°C
• Sizes / catalog numbers: Ø20–Ø60 mm (SHA 204–SHA 212)
• Inch thread variants: available on request
