Flange bearing unit SFD

self-aligningovalball bearing

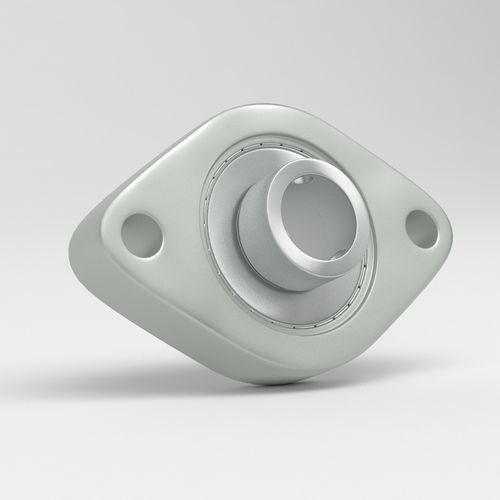

Mounted flange bearing unit in stainless steel
The stainless steel Flange Bearing Unit Oval 2 hole bearing units type SFD with SSA bearing with eccentric collar lock is suitable for the food industry and other demanding environments due to the hygienic design and minimum of maintenance. The stainless steel bearing units are characterized by high quality and finish for both the bearing and the bearing housing.

Oval 2 hole flange bearing unit SFD features and advantages:

• Stainless steel housings AISI 304
• Stainless steel bearings AISI 440C
• Stainless steel grease nipples AISI 304 M6x1 mm
• No surface coating required
• Excellent life span
• Operating temperature from -30°C to +120°C

Oval 2 hole flange bearing unit SFD sizes available
Shaft Diameter | Catalog No.
Ø15 mm | SSAFD 203-15
Ø17 mm | SSAFD 203-17
Ø20 mm | SSAFD 204
Ø25 mm | SSAFD 205
Ø30 mm | SSAFD 206
Ø35 mm | SSAFD 207

Stainless bearing insert with eccentric collar locking.

Mounted Oval 2-Hole Flange Bearing Unit SFD with SSA Y-Insert
Usage
The Mounted Oval 2-Hole Flange Bearing Unit SFD with SSA Y-Insert is a high-performance bearing solution designed for hygienic, high-load, and corrosive environments. The oval 2-hole flange bearing design allows for secure mounting in compact spaces, ensuring stable shaft support and vibration reduction. The SSA Y-insert bearing, made from AISI 420 or AISI 440 stainless steel, provides superior hardness, wear resistance, and corrosion protection, making it ideal for applications with high moisture, aggressive chemicals, and extreme loads. Common applications include food production, pharmaceutical processing, and industrial applications requiring maximum hygiene and durability.

Industries

• Food Processing Industry – Conveyors, mixing equipment, cutting machinery; sanitary compliance and resistance to cleaning agents
• Pharmaceutical Industry – Cleanroom environments, preventing contamination and supporting regulatory compliance
• Beverage Industry – Bottling, filling, brewing systems; moisture resistance and corrosion protection
• Chemical Industry – Exceptional chemical resistance for aggressive and corrosive environments

Material and Construction
The SFD flange bearing unit is made from AISI 304 or AISI 316 stainless steel, offering high corrosion resistance and easy cleaning. The SSA Y-insert bearing is crafted from AISI 420 or AISI 440 stainless steel, delivering enhanced hardness, wear resistance, and durability. The smooth, polished housing meets sanitary standards and prevents bacterial growth. Food-grade seals provide maximum contamination protection and suitability for harsh washdown conditions.

caractéristiques / spécifications techniques

• Housing material: Stainless steel AISI 304 (option AISI 316 mentioned in materials section)
• Bearing material: AISI 440C (SSA Y-insert option AISI 420 or AISI 440)
• Grease nipple: Stainless steel AISI 304, M6x1
• Eccentric collar locking on stainless bearing insert
• Operating temperature range: -30°C to +120°C
• Hygienic design: smooth polished housing, food-grade seals, suitable for washdown; meets EHEDG and 3A sanitary standards (as stated)
• Available shaft diameters and catalog numbers: Ø15 mm (SSAFD 203-15), Ø17 mm (SSAFD 203-17), Ø20 mm (SSAFD 204), Ø25 mm (SSAFD 205), Ø30 mm (SSAFD 206), Ø35 mm (SSAFD 207)
• Typical applications: food processing, pharmaceuticals, beverage, chemical processing
