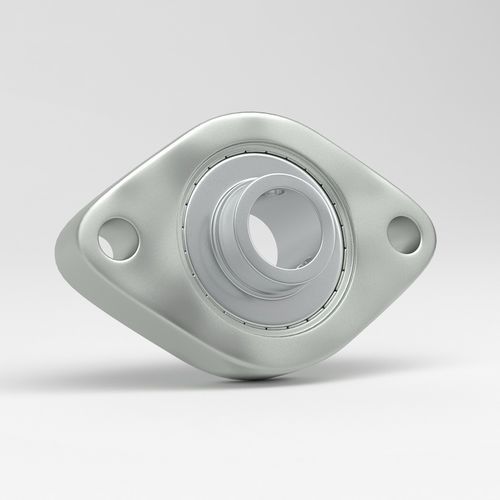

Flange bearing unit SFD

self-aligningovalstainless steel

Overview The stainless steel Flange Bearing Unit Oval 2-hole bearing units type SFD with SSB bearing with set screw lock is suitable for the food industry and other demanding environments due to its hygienic design and minimal maintenance requirements. The stainless steel bearing units are characterized by high quality and finish for both the bearing and the bearing housing.

Features and advantages

• Stainless steel housings AISI 304 (AISI 316 option referenced)
• Stainless steel bearings AISI 440C
• Stainless steel grease nipples AISI 304 M6x1 mm
• No surface coating required; smooth polished hygienic finish
• Excellent service life and corrosion resistance
• Operating temperature range: -30°C to +120°C

Sizes available Shaft Diameter — Catalog No.
Ø15 mm — SSBFD 203-15
Ø17 mm — SSBFD 203-17
Ø20 mm — SSBFD 204
Ø25 mm — SSBFD 205
Ø30 mm — SSBFD 206
Ø35 mm — SSBFD 207

Insert and locking Stainless bearing insert with set screw locking (SSB Y-insert).

Usage The mounted Oval 2-hole Flange Bearing Unit SFD with SSB Y-insert is a high-strength, corrosion-resistant solution designed for hygienic and industrial applications. Its compact oval 2-hole flange design enables secure mounting, stable shaft support and reduced vibration in dynamic systems.

Industries

• Food processing — conveyors, slicing machines and food-handling equipment where sanitation and corrosion resistance are critical
• Pharmaceutical — sterile production environments meeting sanitary requirements
• Beverage — bottling, filling and brewing equipment exposed to moisture and chemicals
• Chemical — processing environments involving corrosive substances

Material and construction The SFD flange bearing unit housing is constructed from AISI 304 or AISI 316 stainless steel for outstanding corrosion resistance and easy cleanability. The SSB Y-insert bearing is made from AISI 420 or AISI 440 stainless steel (AISI 440C referenced for bearings) offering enhanced hardness, wear resistance and mechanical strength. Smooth, polished surfaces meet sanitary expectations to prevent bacterial growth and enable easy maintenance in washdown environments.

Y-Insert bearings Y-insert bearings in AISI 420 or AISI 440 stainless steel provide self-aligning capability, reduced friction and extended service life. AISI 420 offers moderate corrosion resistance while AISI 440 provides superior durability for harsh environments.

Technical specifications

• Model / Series: SFD (Oval 2-hole flange bearing unit)
• Insert type: SSB Y-insert with set screw locking
• Housing material: AISI 304 (optional AISI 316)
• Bearing material: AISI 440C (stainless steel)
• Insert material options: AISI 420 or AISI 440 stainless steel
• Grease nipple: Stainless steel AISI 304, M6x1 mm
• Surface: Smooth, polished hygienic design (meets sanitary washdown expectations)
• Operating temperature range: -30°C to +120°C
• Sizes / Catalog numbers: Ø15 mm — SSBFD 203-15; Ø17 mm — SSBFD 203-17; Ø20 mm — SSBFD 204; Ø25 mm — SSBFD 205; Ø30 mm — SSBFD 206; Ø35 mm — SSBFD 207
• Typical applications: Food processing, pharmaceutical, beverage and chemical industries
