- Bevel gear reducer
- Nidec Graessner GmbH & Co. KG

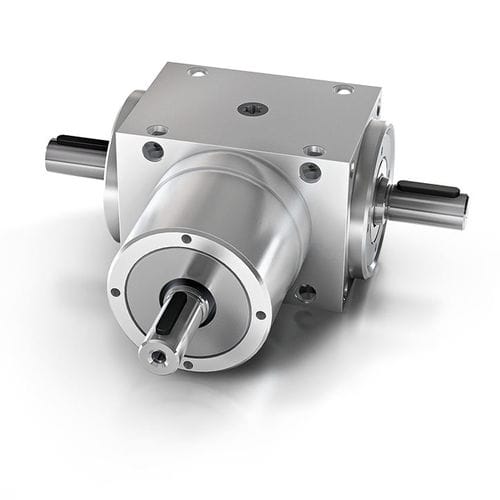

Bevel gearbox PowerGear Miniature seriesright angle10 - 20 Nm5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft orientation
- right angle
- Torque
- 10 - 20 Nm, 5 - 10 Nm
- Configuration
- miniature
- Performance
- precision, low-backlash
- Applications
- transmission
- Rotational speed
7,500 rpm
(47,123.8898 rad.min-1)
Description
Forget everything you know about miniature gears. Dimensions, weight, precision – the new PowerGear Miniature sets new standards. PowerGear Miniature has a sensationally small installation size, an extremely light-weight aluminium housing, maximum performance and precision as well as many other advantages.
The unique design of PowerGear Miniature will open up a vast range of applications in drive technology.
miniature gear for maximum precision
low backlash and high transmission accuracy
case-hardened bevel gear tooth system
friction-locked shaft-and-bevel-gear fit
energy-efficient through high level of efficiency of 98%
extremely light-weight aluminium housing
maintenance free through synthetic oil
