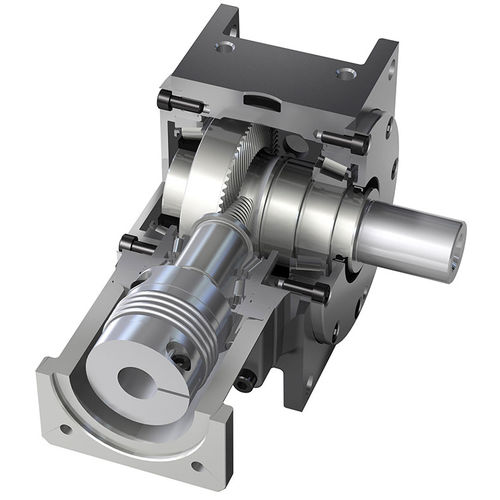

Hypoid gearbox DynaGear series
right angle200 - 500 Nm100 - 200 Nm

hypoid gearbox
hypoid gearbox
Add to favorites
Compare this product


Characteristics

Type
hypoid
Shaft orientation
right angle
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 20 - 50 Nm, 50 - 100 Nm
Number of stages
single-stage, two-stage
Performance
precision, high-performance, maintenance-free
Applications
shaft
Other characteristics
compact, flange
Rotational speed

Min.: 550 rpm (3,455.75 rad.min-1)

Max.: 8,000 rpm (50,265.48 rad.min-1)

Description

The design of the DynaGear range has been influenced by extremely varied applications within many industry sectors. The DynaGear range has been developed with a highly dynamic servo drive solution in mind and therefore benefits from many advantages. Dynamic and Precision in small format - our new size DynaGear D37 is designed for highly dynamic servo drive solutions in compact applications. Internal Highlights Right-angle gearbox, single-stage, ratios from 3:1 to 15:1, two-stage up to 100:1, higher ratios on request, The compact and rigid design ensures highest performance whilst being space and weight efficient. Lubricated for life, the gearboxes are virtually maintenance-free (when used under normal conditions). The high efficiency rating of 96% saves energy costs (92 % at DG-HR). External Highlights The DynaGear fits all current servo motors by way of input flanges and couplings to suit. Torsional vibration can be adjusted via the coupling stiffness. The gearbox dimensions are identical for all ratios. New configuration with robot flange according to EN ISO 9409-1 and hollow shaft enables lead-through of supply lines and other media.
