- Hypoid gear reducer
- Nidec Graessner GmbH & Co. KG

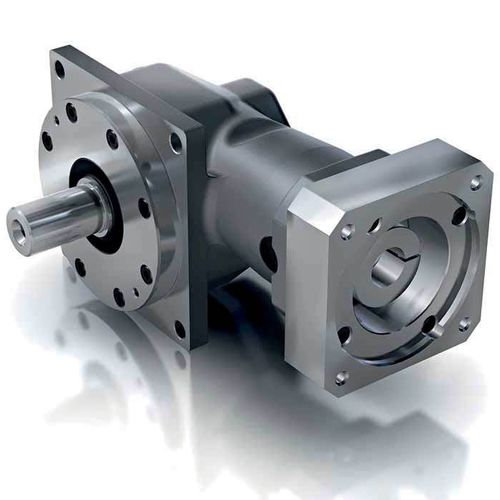

Hypoid gearbox DynaGear Eco seriesright angle50 - 100 Nmcompact
Add to favorites
Compare this product
Characteristics
- Type
- hypoid
- Shaft orientation
- right angle
- Torque
- 50 - 100 Nm
- Configuration
- compact
- Number of stages
- single-stage
- Performance
- maintenance-free
- Rotational speed
Min.: 2,100 rpm
(13,194.6891 rad.min-1)Max.: 6,000 rpm
(37,699.1118 rad.min-1)
Description
DynaGearEco – The cost-effective right-angle servo gearbox
The design of the DynaGearEco range has been influenced by extremely varied applications within many industry sectors. The DynaGearEco range has been developed with a dynamic servo drive solution in mind and therefore benefits from many advantages.
dynagear economy1
Right angle gearbox, single-stage, ratios 5:1, 8:1, 10:1 and 15:1.
The compact and rigid design ensures highest performance whilst being space and weight efficient.
Lubricated for life, the gearboxes are virtually maintenance-free (when used under normal conditions).
The high efficiency rating of up to 96% saves energy costs
