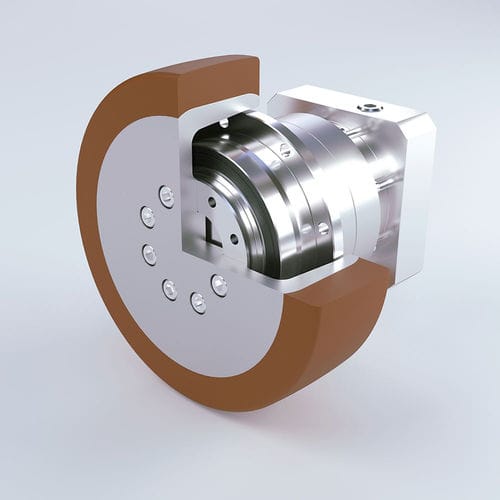

Planetary gearbox NGG seriescoaxialright angle200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial, right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
- Configuration
- compact
- Applications
- for electric motors
- Rotational speed
Min.: 3,500 rpm
(21,991.1486 rad.min-1)Max.: 8,500 rpm
(53,407.0751 rad.min-1)7,500 rpm
(47,123.8898 rad.min-1)
Description
Nidec GuidedGear (AGV)
As a professional in gearbox manufacturing, we also offer you a powerful drive solution for your automated guided vehicles (AGVs): GuidedGear.
You can choose between our standardised coaxial or angular solution or a fully customised solution, including motor and controller on request..
Helical planetary gearHigh precision
High running smoothness
Compact design
Customised design possible
High radial loads
Angular version (EVO Series)
7 standard series (including angular versions)
A variety of motor flanges available
All parts from one supplier
Worldwide service
