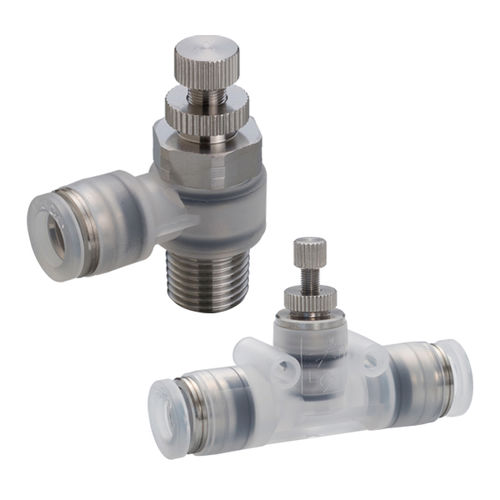

Flow regulator valve PJS series
needlewith handwheelfor air

flow regulator valve
flow regulator valve
flow regulator valve
flow regulator valve
flow regulator valve
Add to favorites
Compare this product


Characteristics

Type
needle
Operation
with handwheel
Function
flow regulator
Media
for air, for compressed air
Body
straight, right-angle, stainless steel, polypropylene
Applications
for hygienic applications, for pneumatic cylinders, sanitary
Other characteristics
ISO, compact, push-in
DN

4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)

Pressure

Min.: 0.1 MPa

Max.: 1 MPa

Temperature

Min.: 0 °C
(32 °F)

Max.: 80 °C
(176 °F)

Description

PP (Polypropylene) is applied for the body material to adapt to clean environment. Easy to check sanitary condition. The resin body color is clear (semitranparent). It is compatible with special specifications. Sealing rubber material can be changed from EPDM to FKM or HNBR depending on applications. Two types of package are available. Standard package and Clean room package that items are washed by clean air, then packed in ISO class 6 equivalent clean room are available. The thread specification can be chosen from Sealock treatment and no-sealock treatment depending on applications Small union straight type is achieved downsizing by renewed design. Sealing rubber material: HNBR is newly added. Inch size: ø1/4, ø3/8, ø1/2 are newly added. For price options, please contact our distributor near your office. https://www.pisco.co.jp/en/company/network/

Catalogs

No catalogs are available for this product.

See all of NIHON PISCO CO., Ltd.‘s catalogs
