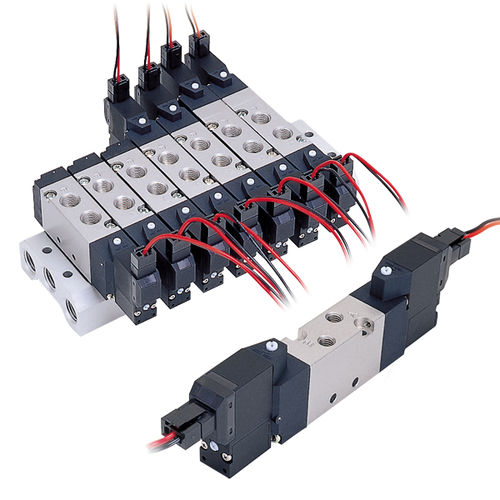

Pilot-operated solenoid valve SVB series5-wayairBSP 1/8
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 5-way
- Medium
- air
- Process connection
- BSP 1/4, BSP 1/8
- Other characteristics
- standard, spool
- Valve plug seal material
- NBR
- DN
Min.: 2 mm
(0.079 in)Max.: 18 mm
(0.709 in)- Voltage
Min.: 21.6 V
Max.: 26.4 V
- Temperature
Min.: 5 °C
(41 °F)Max.: 50 °C
(122 °F)- Pressure
Min.: 0.2 MPa
Max.: 0.7 MPa
Description
Standard type Solenoid Valve designed to place importance on basic functions.
Equipped with push & lock manual button as standard specification.
It enhances operational efficiency during maintenance work.
The body is prepared in two different colors.
Silver and light gray are available. Color choice depending on the usage environmen is possible. (Only light gray is available for 10 series. )
Equipped with individual connectors.
Top lead-out and side lead-out are available, depending on the installation environment.
