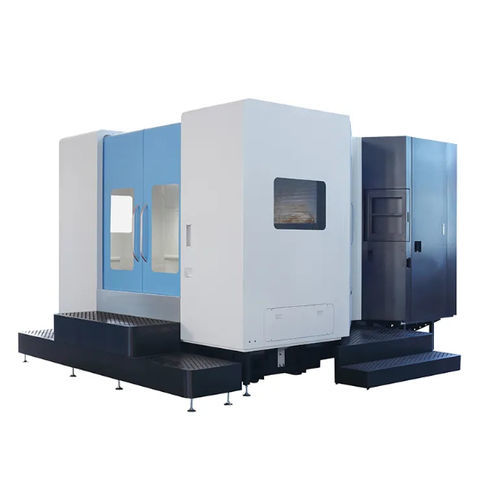

3-axis machining center H series4-axishorizontaldouble-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 4-axis
- Spindle orientation
- horizontal
- Structure
- double-column, with rotary indexing table
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools, 30 tools, 40 tools
- Associated functions
- milling, drilling, tapping
- Other characteristics
- high-precision, high-productivity, high-rigidity, with tool changer
- X travel
105 mm, 750 mm, 1,300 mm, 1,600 mm
(4.13 in, 29.53 in, 51.18 in, 62.99 in)- Y travel
500 mm, 750 mm, 900 mm, 1,000 mm
(19.69 in, 29.53 in, 35.43 in, 39.37 in)- Z travel
500 mm, 900 mm, 1,000 mm
(19.69 in, 35.43 in, 39.37 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Table rotation (C axis)
Min.: 0 °
Max.: 360 °
- Work feed X-axis
16 m/min, 24 m/min, 30 m/min
- Work feed Y-axis
16 m/min, 24 m/min, 30 m/min
- Work feed Z-axis
16 m/min, 24 m/min, 30 m/min
- Table load capacity
500 kg, 800 kg, 2,000 kg, 3,000 kg
(1,102 lb, 1,764 lb, 4,409 lb, 6,614 lb)- Positioning accuracy
0.012 mm, 0.015 mm, 0.018 mm
(0.00047 in, 0.00059 in, 0.00071 in)- Repeatability
Min.: 0.008 mm
(0.00031 in)Max.: 0.012 mm
(0.00047 in)- Weight
8,000 kg, 9,500 kg, 12,500 kg, 51,600 kg
(17,636.98 lb, 20,943.91 lb, 27,557.78 lb, 113,758.53 lb)- Overall length
2,450 mm, 3,050 mm, 3,750 mm, 4,300 mm
(96.5 in, 120.1 in, 147.6 in, 169.3 in)- Overall width
3,050 mm, 4,250 mm, 5,500 mm, 5,600 mm
(120.1 in, 167.3 in, 216.5 in, 220.5 in)
Description
The H Series Horizontal Machining Center (models H500, H630, H800, H1000) is engineered for multi‑face, high‑precision and heavy cutting operations. It combines an inverted T one‑piece bed, door‑type double‑wall column and a standard 360° indexed rotary table to reduce setups and increase throughput.
Key product highlights
Main components and functional modules
Standard configuration (selected items and origins)
Technical specifications
Key product highlights
- Inverted T one‑piece bed and door‑shaped double‑wall column for high structural rigidity and vibration resistance.
- Three axes driven by large‑diameter ball screws to improve transmission rigidity, repeatability and positioning accuracy.
- High‑precision roller linear guides on X/Y/Z for fast response and consistent positioning.
- Standard 360° rotary table enabling multi‑face machining in a single clamping; optional 4th‑axis turntable available.
- Supports milling, boring, drilling (drill/ream/enlarge), tapping and countersinking for heavy cutting and precision batch or single‑piece production.
Main components and functional modules
- Machine body: high‑strength resin sand‑cast cast‑iron bed optimized for vibration damping and machining stability.
- CNC control: FANUC CNC (example: FANUC MF5) with multi‑language support and USB program I/O; FANUC or SIEMENS options available.
- Spindle: reinforced die‑cast iron spindle box; direct or belt drive options (BBT40 / BT40–BT50 depending on model); max speeds up to 12,000 rpm on some models, power ratings referenced up to 7.5 kW.
- Spindle cooling / oil cooler: oil‑cooling for spindle temperature control to stabilize thermal growth (~22°C target documented).
- Air system: air filtration to remove water and dust from the air source and protect components.
- Central water / spindle cooling water: central water outlet for spindle cooling to dissipate heat and improve accuracy and spindle life.
- Tool magazine / changer: disk‑type mechanical‑arm tool changer with roller‑cam positioning for accurate, fast tool changes; optional magazine capacities (24/30/40) by model.
- Optional axes / rotary tables: optional fourth axis turntable for multi‑sided processing and reduced reclamping.
- Guide way & screw: PMI/HIWIN/THK references with high‑precision roller guides and C3/R‑grade ball screws (example: 2508 φ25 mm × 8 mm pitch).
- Electric / control cabinet: Schneider low‑voltage components, Syntec/FANUC/SIEMENS driver options and cabinet air conditioning.
- Hydraulic system: e.g., Seven Ocean hydraulic pack (~20 L) for chuck, tailstock and hydraulic cylinders.
- Lubrication & cooling: Ishan lubrication system for guides/screws, oil separator lubrication, 2 m lift pump and ~38 L cyclic coolant tank for tool cooling and chip removal.
Standard configuration (selected items and origins)
- CNC system: FANUC MF5 (Japan) as standard example.
- Ball screws & guide ways: PMI / HIWIN / THK.
- Screw bearings: NSK / NACHI.
- Couplers: R+W / Jingqin.
- Tool changer: Okada / Chen Sound.
- Electrical components: Schneider (France).
- Hydraulic: Seven Ocean (Taiwan).
- Spindle oil cooler & heat exchanger: Rucol / Quang.
Technical specifications
- Models: H500, H630, H800, H1000
- Worktable size (L×W): H500: 500×500 mm; H630: 630×700 mm; H800: 800×800 mm; H1000: 1000×1000 mm
- Max table load: H500: 500 kg; H630: 800 kg; H800: 2000 kg; H1000: 3000 kg
- Table indexing (B): H500: 0.001° (indexed); H630/H800/H1000: 1° × 360°
- T‑slot (W×pitch): H500: 5–18 ×100 mm; H630/H800: 5–22 ×125 mm; H1000: 7–22 ×125 mm
- Max workpiece swing Ø: H500 Ø850 mm; H630 Ø1100 mm; H800 Ø1500 mm; H1000 Ø1700 mm
- Max travel X / Y / Z (mm): H500: 750 / 500 / 500; H630: 1050 / 750 / 900; H800: 1300 / 900 / 1000; H1000: 1600 / 1000 / 1000
- Spindle‑to‑table distance (range): H500: 100–600 mm; H630: 120–870 mm; H800: 100–1000 mm; H1000: 0–1000 mm
- Spindle spec & drive: H500 BT40 (belt/direct), H630 BT40/BT50, H800 BT50, H1000 BT50
- Max spindle speed: H500/H630: 12,000 rpm; H800/H1000: 8,000 rpm
- Rails (X/Y/Z): H500: 35/45/45 mm; H630: 45/45/55 mm; H800/H1000: 55/55/55 mm
- Positioning accuracy (X/Y/Z): H500: 0.012 mm; H630/H800: 0.015 mm; H1000: 0.018 mm
- Repeatability (X/Y/Z): H500: 0.008 mm; H630/H800: 0.01 mm; H1000: 0.012 mm
- Optional tool magazine capacity: H500: 24; H630: 24/30; H800/H1000: 24/30/40
- Approx. total weight: H500: 8000 kg; H630: 9500 kg; H800: 12,500 kg; H1000: 51,600 kg
- Overall dimensions (approx.): H500: 2450×3050 mm; H630: 3050×4250 mm; H800: 3750×5500 mm; H1000: 4300×5600 mm
