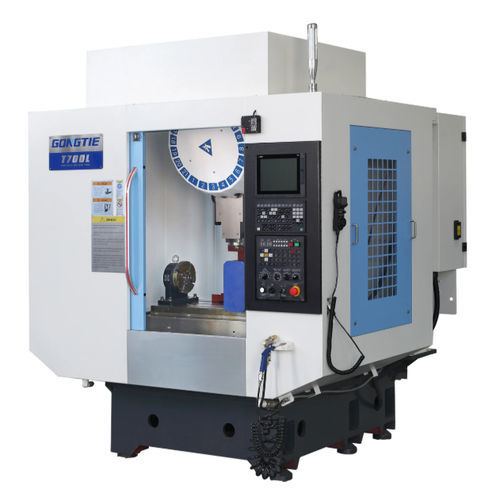

CNC drilling and tapping machine T series

PLC-controlledvertical3-axis

Overview
The T-series Vertical CNC Drilling & Tapping Center (T700 / T800 / T1000 / T1300) is a high-speed, high-rigidity machining center for precision drilling, tapping and light milling of small-to-medium workpieces used in 3C, new-energy automotive parts, precision molds and general precision machining.

Key features

• High-strength resin sand-cast iron body for base, tool carriage, table, column and spindle box to improve vibration damping and machining stability.
• Disk-type mechanical-arm tool changer with roller-cam drive and accurate positioning; optional 21-tool magazine for extended unattended operation.
• Air filtration system to remove water and dust from the air source, protecting pneumatic components.
• Large-flow coolant pump and dedicated tank for spindle and tool cooling; central outlet for effective spindle heat dissipation.
• Automatic lubrication for guideways and ball screws; oil-separator lubrication and cyclic water supply with high-pressure pump for tool cooling and chip evacuation.
• PLC-controlled solenoid valves for tool clamp/release, ATC door control and spindle air blow; Schneider electrical distribution components; CNC options Mitsubishi/FANUC/Syntec.

Applications

• Precision drilling, tapping and milling for 3C components, new-energy automotive parts, precision mold manufacture and related precision machining fields.

Technical specifications

• Worktable size (L×W) mm: T700 — 800×420; T800 — 1000×500; T1000 — 1100×500; T1300 — 1400×600.
• Worktable max. loading (kg): T700 — 300; T800 — 350; T1000 — 350; T1300 — 500.
• T-slot (width × pitch) mm: T700 — 3-14×125; T800 — 5-18×100; T1000 — 5-18×120; T1300 — 5-18×100.
• Worktable X travel (mm): T700 — 700; T800 — 800; T1000 — 1000; T1300 — 1300.
• Y axis max. travel (mm): T700 — 450; T800 — 500; T1000 — 500; T1300 — 650.
• Z axis (spindle) max. travel (mm): T700/T800/T1000 — 330; T1300 — 450.
• Spindle nose to table distance (max./min.) mm: T700/T800/T1000 — 150–480; T1300 — 150–600.
• Spindle center to guide surface (mm): T700 — 460; T800 — 540; T1000 — 540; T1300 — 700.
• Spindle spec: BT30 / BT40 (all models); spindle form: direct drive; max. speed: 20,000 r/min.
• X/Y/Z rail spec (mm): T700 — 30/30/30; T800 — 35/35/35; T1000 — 35/35/35; T1300 — 45/45/45.
• X/Y/Z screw spec: T700 — R2816 / R3216; T800 — R3216; T1000 — R3216; T1300 — R4012.
• X/Y/Z rapid feed (m/min): T700/T800/T1000 — 48/48/48; T1300 — 36/36/36.
• Positioning accuracy (mm): T700 — 0.01; T800 — 0.01; T1000 — 0.012; T1300 — 0.012.
• Repeatability (mm): T700 — 0.008; T800 — 0.008; T1000 — 0.01; T1300 — 0.01.
• Optional magazine: 21 tools (all models).
• Total weight (kg): T700 — 3500; T800 — 4000; T1000 — 4500; T1300 — 5500.
• Overall dimensions (mm): T700 — 2600×2250; T800 — 2800×2750; T1000 — 3000×2750; T1300 — 3300×2950.
• Standard/optional highlights: CNC control Mitsubishi/FANUC/Syntec; spindle assembly Speedcn (Taiwan); ball screws & guideways PMI/HIWIN/THK; bearings NSK/NACHI; tool changer Okada/Chen Sound; electrical Schneider. (See product page for full standard configuration.)
