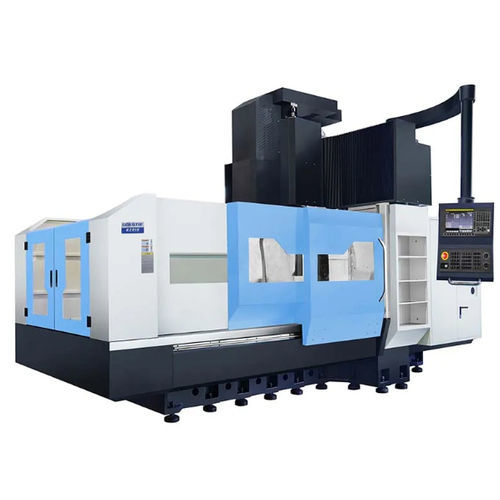

3-axis machining center GS/G series4-axisgantryBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 4-axis
- Structure
- gantry
- Spindle mount
- BT 40, BT 50, BBT40
- Number of tool stations
- 24 tools, 30 tools
- Associated functions
- milling
- Applications
- heavy-duty
- Other characteristics
- high-performance, high-precision, high-rigidity, direct-drive, with automatic tool changer, with tool changer
- X travel
1,600 mm, 2,000 mm, 2,500 mm
(62.99 in, 78.74 in, 98.43 in)- Y travel
1,200 mm, 1,500 mm, 1,800 mm
(47.24 in, 59.06 in, 70.87 in)- Z travel
500 mm, 800 mm
(19.69 in, 31.5 in)- Rotational speed
8,000 rpm, 15,000 rpm
(50,265 rad.min-1, 94,248 rad.min-1)- Power
Min.: 7.5 kW
(10.2 hp)Max.: 7.5 kW
(10.2 hp)- Work feed X-axis
15 m/min
- Work feed Y-axis
20 m/min
- Work feed Z-axis
20 m/min
- Table load capacity
2,000 kg, 3,000 kg, 4,000 kg, 5,000 kg
(4,409 lb, 6,614 lb, 8,818 lb, 11,023 lb)- Positioning accuracy
0.018 mm, 0.022 mm, 0.025 mm
(0.00071 in, 0.00087 in, 0.00098 in)- Weight
9,500 kg, 11,500 kg, 17,500 kg, 23,500 kg
(20,943.91 lb, 25,353.16 lb, 38,580.9 lb, 51,808.63 lb)- Overall length
4,250 mm, 5,850 mm, 6,250 mm, 6,850 mm
(167.3 in, 230.3 in, 246.1 in, 269.7 in)- Overall width
3,650 mm, 3,850 mm, 4,250 mm
(143.7 in, 151.6 in, 167.3 in)
Description
Overview
The GS/G series is a heavy-duty gantry machining center family designed for high structural rigidity, thermal stability and precise multi-axis milling of large workpieces. Available models: GS1612, GS2012, GS2015 and GS2518. Key construction uses Meehanite cast iron and resin sand casting for vibration damping and dimensional stability.
Highlights
Main components and functions
Technical specifications
The GS/G series is a heavy-duty gantry machining center family designed for high structural rigidity, thermal stability and precise multi-axis milling of large workpieces. Available models: GS1612, GS2012, GS2015 and GS2518. Key construction uses Meehanite cast iron and resin sand casting for vibration damping and dimensional stability.
Highlights
- Machine structure: bed, worktable, column, beam, saddle and ram manufactured in high-strength Meehanite/resin-sand cast iron for enhanced damping and thermal stability.
- Guideways & motion: X/Y axes with heavy-duty roller linear guides; Z axis with heavy roller linear guide or rectangular hard rail; motion pairs provide smooth travel and high wear resistance.
- Drive & screws: high-precision pre-tensioned ball screws on X/Y/Z directly driven by high-power AC servo motors to eliminate backlash transmission.
- Z-axis balance: double nitrogen balance cylinders reduce no-load torque on ball screw, lowering wear and preserving accuracy.
Main components and functions
- Machine body: high-strength resin-sand cast Meehanite body providing anti-vibration performance and stable support for heavy machining.
- CNC system: Mitsubishi M80A standard in configuration table; FANUC or SIEMENS available as options; multi-language support and USB program I/O.
- Spindle: die-cast iron spindle box; direct-driven spindle (BBT40/BT50 depending on model) with speeds up to 12,000–15,000 rpm (model-dependent) and spindle power up to ~7.5 kW (option dependent). Oil cooler maintains spindle thermal consistency.
- Tool changer: disc-type mechanical-arm tool changer with fast, accurate roller-cam positioning; optional magazine capacities (24 / 30).
- Auxiliaries: central spindle coolant outlet, air filtration for the pneumatic supply, lubrication system for guides and screws, hydraulic unit for chuck/rear support and electrical cabinet cooling.
- Options: 4th-axis rotary table for multi-sided machining, chip conveyor, belt/gear spindle variants and choice of guide/screw brands (PMI/HIWIN/THK).
Technical specifications
- Models covered: GS1612, GS2012, GS2015, GS2518
- Worktable size (L×W): GS1612 1700×1000 mm; GS2012 2100×1000 mm; GS2015 2100×1200 mm; GS2518 2700×1500 mm
- Max table load: 2000 / 3000 / 4000 / 5000 kg respectively
- Travel (X×Y×Z): GS1612 1600×1200×500 mm; GS2012 2000×1200×500 mm; GS2015 2000×1500×800 mm; GS2518 2500×1800×800 mm
- Spindle specs: GS1612/GS2012 BT40 direct, max 15000 rpm; GS2015/GS2518 BT50 belt/gear option, max 8000 rpm
- Positioning / repeatability: positioning accuracy ~0.018–0.025 mm; repeatability ~0.012–0.015 mm (model dependent)
- Rapid feed (X/Y/Z): typical 15/20/20 m/min for smaller models; verify with supplier for exact values per model and options
- Weight / overall dimensions (approx.): GS1612 9500 kg (4250×3650 mm); GS2012 11500 kg (5850×3650 mm); GS2015 17500 kg (6250×3850 mm); GS2518 23500 kg (6850×4250 mm)
- Standard components (examples): CNC Mitsubishi M80A (FANUC/SIEMENS optional), spindle assembly Speedcn, ball screws/guides PMI/HIWIN/THK, bearings NSK/NACHI, electrical parts Schneider.
