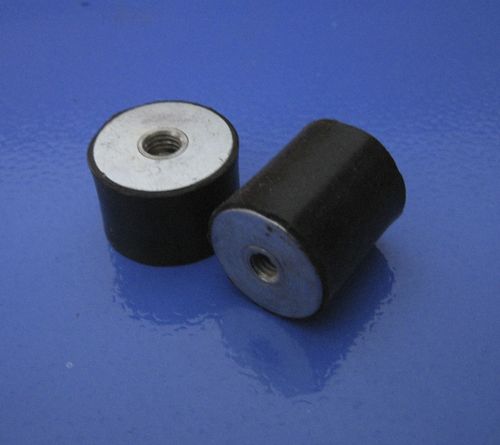

Cylindrical anti-vibration mount BS-C series
rubberfor blowersactive vibration isolators

cylindrical anti-vibration mount
cylindrical anti-vibration mount
Add to favorites
Compare this product

Characteristics

Configuration
cylindrical
Material
rubber
Applications
for blowers
Other characteristics
active vibration isolators
Static load

Max.: 5,099.46 N

Min.: 392.27 N

Diameter

30 mm, 40 mm, 50 mm, 75 mm, 100 mm (1.181 in)

Description

OPERATION AND INSTALLATION Their elasticity is much greater in all the directions parallel to the armatures than in the perpendicular direction. The rubber works based on compression or shear depending on the direction it is placed in at installation time. This direction is made according to the use and the objective. It is therefore installed with nuts or screws depending on the model chosen, with one part attached to the fixed chassis and the other to the machine to be suspended. APPLICATIONS The BS-C Types are particularly suitable for installation on small motor-pumps, motor-ventilators, driers, sieves, compactors, washing machines, electrical motors, on-board control panels, measuring apparatuses, control cabinets, microphones, fluorescent tubes, etc. Type - Hardness - Max Load - Static - Dimension in mm Deflection - H - D - S - M I.R.H.D - kg - mm BS-C30/30 - 60 - 40 - 2.7 - 30 - 30 - 8 - M8 BS-C40/30 - 60 - 76 - 2.5 - 30 - 40 - 10 - M10 BS-C50/35 - 60 - 120 - 3.9 - 35 - 50 - 10 - M10 BS-C75/40 - 60 - 300 - 4.8 - 40 - 75 - 12 - M12 BS-C100/60 - 60 - 520 - 5.3 - 60 - 100 - 14 - M16
