Protection sleeve

tubularcompositecarbon

Overview

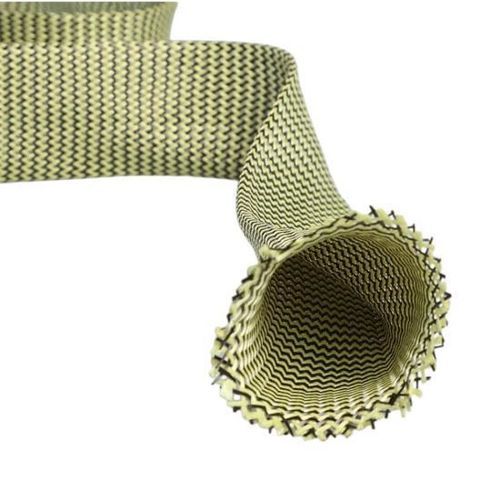

Aramid-Carbon Hybrid Braided Sleeving is a braided tubular composite reinforcement manufactured from carbon fiber and aramid (Kevlar®) fibers. The hybrid lay-up combines carbon's high stiffness and low weight with aramid's impact resistance and toughness. The sleeve's braided construction enables radial expansion for fitting over mandrels, tubes and irregular cores before resin impregnation or composite lay-up. After curing with compatible resin systems (epoxy, polyester, vinyl ester), the sleeve provides a high-strength, lightweight reinforcement layer for structural components in demanding industrial applications.

Key Features

• High tensile strength and stiffness
• Enhanced impact and fatigue resistance
• Lightweight reinforcement with excellent strength-to-weight ratio
• Braided structure allows radial expansion for easy installation
• Good vibration damping compared to monolithic carbon
• Compatible with standard composite resins (epoxy, polyester, vinyl ester)

Key Technical Properties

• Fiber composition: Carbon fiber + Aramid fiber (Kevlar®)
• Structure: Braided tubular sleeve
• Operating temperature: Dependent on chosen resin system
• Mechanical characteristics: High tensile and impact resistance
• Weight: Lightweight composite reinforcement
• Diameter range: Custom sizes available

Advantages

• Combines stiffness of carbon fiber with toughness of aramid
• Improved crack and impact resistance versus pure carbon sleeves
• Better structural stability under dynamic loads
• Design flexibility through customizable braid angle and fiber ratio

Typical Applications

• Composite tubes and shafts
• Automotive drive shafts and structural components
• Racing and motorsport parts
• UAV and aerospace secondary structures
• Sporting goods reinforcement
• Industrial composite parts and tooling

Customization & OEM Support

• Custom diameters and braid angles
• Various carbon-to-aramid ratios
• Surface treatments and sizing compatible with resin systems
• Roll length and OEM packaging options

FAQ (selected)

• Difference from pure carbon sleeve? — Hybrid combines carbon stiffness with aramid toughness to reduce brittleness and improve impact performance.
• Can the sleeve expand during installation? — Yes; braided construction permits radial expansion to fit over cores prior to resin application.
• Which resins are compatible? — Epoxy, polyester, vinyl ester and other common composite resins.
• Is it suitable for high-temperature use? — Thermal limits depend on the chosen resin system rather than the fibers themselves.

Specifications

• Minimum order quantity (MOQ): 1
• Origin: China
• Color: yellow
• Shipping ports: Shanghai, Ningbo
• Compatible resins: epoxy, polyester, vinyl ester
• Customization: diameters, braid angles, carbon-to-aramid ratios, roll length, OEM packaging
