Aluminized insulation blanket

for turbochargersfor vehiclesfor pipes

Product Overview

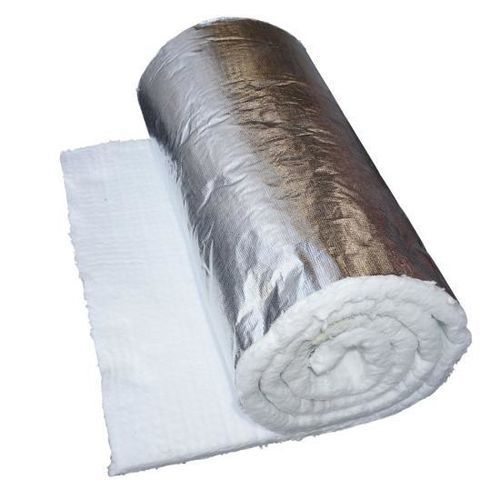

The ceramic fiber insulation blanket with aluminum foil coating provides reliable thermal protection for components exposed to high temperatures. Its lightweight, flexible construction and reflective aluminum layer make it suitable for applications that require conformity to complex shapes and reduced heat radiation.

Details
Manufactured from alumina‑silica ceramic fibers, the blanket is coated on one side with an aluminum foil layer that reflects radiant heat and improves resistance to moisture and abrasion. The material’s flexibility enables tight wrapping and shorter installation times while maintaining thermal stability at elevated temperatures.

Key Features

• Continuous service temperature: Up to 1,260°C (2,300°F).
• Aluminum foil coating: Reflects radiant heat and provides resistance to moisture, oils and contaminants.
• Flexible and lightweight: Conforms to curved surfaces and confined spaces for efficient installation.
• Energy efficiency: Reduces heat loss to improve system thermal performance.
• Durability: Coated surface increases abrasion and chemical resistance for extended service life.
• Non-toxic composition: Manufactured from non-toxic ceramic materials.

Applications

• Automotive exhaust systems: Wrapping exhaust manifolds, turbochargers and headers.
• Industrial furnaces and kilns: Lining and insulation to maintain process temperatures.
• Aerospace components: Insulation for engines, ducts and exhaust assemblies.
• Pipe and duct insulation: Thermal protection for pipes and conduits in high-temperature environments.

Technical Specifications

• Material: Ceramic fiber blanket with aluminum foil coating.
• Continuous service temperature: Up to 1,260°C (2,300°F).
• Coating function: Reflective radiant heat barrier; moisture and contaminant resistance; improved abrasion resistance.
• Physical properties: Lightweight, flexible and easy to handle.
• Chemical resistance: Resistant to oils, common chemicals and moisture.
• Safety: Non-toxic materials.
• Minimum order quantity (MOQ): 1.
