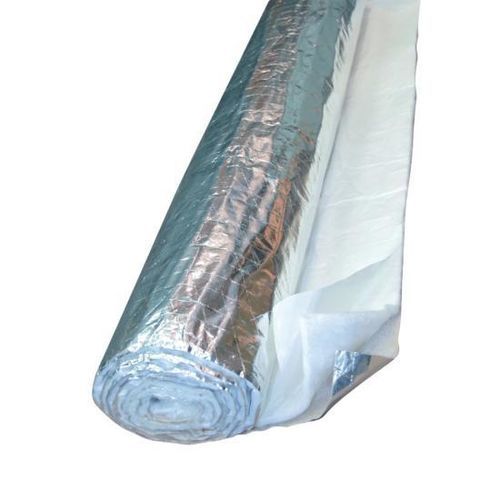

Heat insulating glass fiber mat

Overview
The Adhesive Backed Aluminum Foil Fiberglass Insulation Mat is a high-performance thermal and acoustic insulation solution designed for demanding high-temperature environments. Featuring a durable 100 μm aluminum foil surface and a customizable 3–25 mm fiberglass core, it effectively reflects radiant heat and reduces noise. The strong self-adhesive backing allows quick, clean installation on flat or slightly curved surfaces. Ideal for engine bays, industrial machinery, boilers, and built-in appliances, this insulation mat delivers long-lasting protection, stability, and efficiency where traditional foam materials cannot perform.

Built for Extreme Conditions
At the heart of this insulation mat is a 100 μm aluminum foil top layer engineered to reflect intense radiant heat and protect surrounding components from thermal damage. Beneath it, a customizable 3–25 mm fiberglass insulation layer delivers outstanding heat control and noise reduction while maintaining structural integrity under continuous high-temperature exposure.

Why Choose Our Insulation Mat?
Premium Thermal Protection

• High-performance foil reflects a large portion of radiant heat
• Fiberglass core maintains low thermal conductivity for maximum efficiency
• Designed for substrate temperatures up to 180°C and radiant heat up to 500°C

Effortless Installation

• Strong self-adhesive backing — no additional fasteners required
• Can be cut, shaped, or die-cut for seamless integration
• Conforms easily to flat surfaces and mild curves

Customizable to Your Needs

• Fiberglass layer available in 3–25 mm thickness
• Option to produce custom shapes, sizes, or OEM-ready components
• Flexible manufacturing to support various industries and project requirements

Ideal Applications

• Engine compartments and heat shields
• Boiler rooms, heaters, and thermal equipment
• Machinery housings and acoustic enclosures
• Built-in stoves, ovens, and household appliances
• Industrial processing and high-heat installations

Installation Steps

• 1. Clean and dry the mounting surface
• 2. Cut the mat to required dimensions
• 3. Remove the release liner to expose the adhesive
• 4. Apply with firm pressure to ensure complete bonding
• 5. Seal all edges with heat-resistant aluminum tape for maximum longevity

Key Advantages at a Glance
100 μm Aluminum Foil — Superior radiant heat reflection
3–25 mm Fiberglass Layer — Adjustable insulation thickness for any application
Self-Adhesive Backing — Fast, tool-free installation
Thermal + Acoustic Performance — Two-in-one functionality
High Durability — Resistant to heat, vibration, and mechanical stress

Technical Characteristics / Specifications

• Product type: Adhesive backed aluminum foil + fiberglass insulation mat
• Top layer: 100 μm reinforced aluminum foil
• Core: Fiberglass insulation, thickness customizable from 3 mm to 25 mm
• Adhesive: Strong self-adhesive backing for direct mounting
• Thermal rating: Suitable for substrate temperatures up to 180°C and radiant heat up to 500°C
• Performance: Provides combined thermal insulation and acoustic dampening
• Mechanical: Resistant to heat, vibration, and mechanical stress; maintains structural integrity under continuous high-temperature exposure
• Customization: Available in custom shapes, sizes, and OEM-ready components; can be cut or die-cut
• Typical applications: Engine bays, boilers, industrial machinery, appliances, acoustic enclosures
• Order (MOQ): 1
• Manufacturer: ANHUI PARKER NEW MATERIAL CO.,LTD
