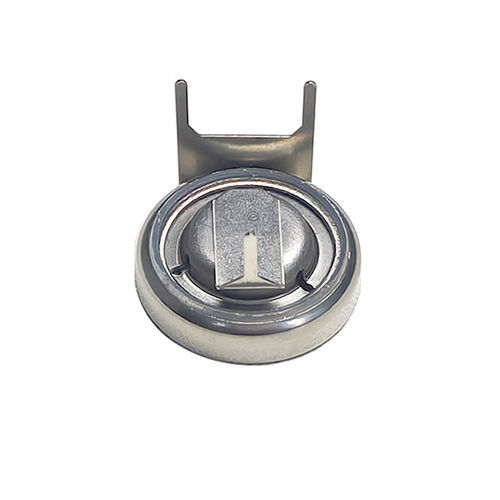

Carbon monoxide sensor MST140

electrochemicalfor the chemical industryfor gas analyzers

Product Overview: MST140 electrochemical carbon monoxide (CO) gas sensor is a fuel cell-type sensor. Carbon monoxide and oxygen undergo corresponding redox reactions at the working electrode and counter electrode, releasing electric charges to form a current. The magnitude of the generated current is proportional to the concentration of carbon monoxide and follows Faraday's Law. The concentration of carbon monoxide can be determined by measuring the magnitude of the current. Sensor Features: - High sensitivity and high selectivity to carbon monoxide - Extremely fast response to carbon monoxide - Linear output - Long service life - Environmentally friendly structural design - Unique anti-leakage structure Main Applications: - Carbon monoxide monitoring for household use - Carbon monoxide monitoring for commercial use - Carbon monoxide monitoring in indoor parking lots - Carbon monoxide monitoring in scenarios such as yachts and recreational vehicles (RVs) - Carbon monoxide monitoring for generators - Carbon monoxide monitoring in smart homes Product Specification: - Object gas: carbon monoxide - Measuring range: 0~1000ppm - Extreme overload: 2000ppm - Output signal: 1.5~3.5nA/ppm - Repetitiveness: ±2% - Resolution: 0.5ppm - Typical response time (t90): <60 seconds - Long-term output drift: Less than 2% month - Expected life: 10 years - Working temperature: -20~50℃ - Humidity at work: 15~90%RH - Working pressure range: 0.1MPa ±10% - Recommended load resistance: 1KΩ - Offset voltage: no requirement Cross-sensitive characteristic data: - Ethyl alcohol: 100ppm, <30ppm CO equivalent - Hydrogen sulfide: 100ppm, <30ppm CO equivalent - Sulfur dioxide: 20ppm, <30ppm CO equivalent - Hydrogen: 500ppm, <30ppm CO equivalent - Nitrogen dioxide: 10ppm, <30ppm CO equivalent - Ammonia: 20ppm, <30ppm CO equivalent Technical Specifications / Features: - Type: Electrochemical CO sensor - Object gas: Carbon monoxide - Measuring range: 0~1000ppm - Extreme overload: 2000ppm - Output signal: 1.5~3.5nA/ppm - Repetitiveness: ±2% - Resolution: 0.5ppm - Typical response time (t90): <60 seconds - Long-term output drift: <2% per month - Expected life: 10 years - Working temperature: -20~50℃ - Humidity at work: 15~90%RH - Working pressure range: 0.1MPa ±10% - Recommended load resistance: 1KΩ - Offset voltage: no requirement
