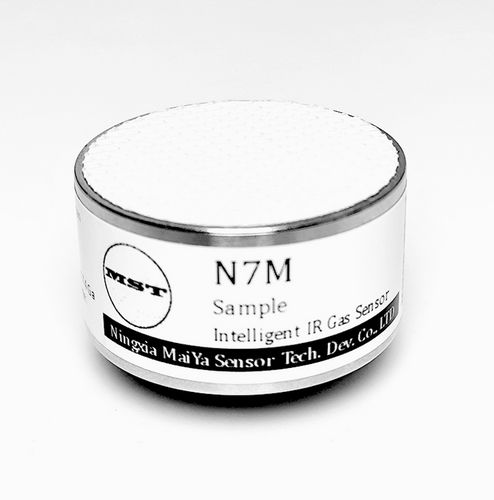

Carbon disulfide gas sensor MST-N7M CS2

infraredNDIRmonitoring

Overview
MST-N7M is a nondispersive infrared (NDIR) gas sensor specifically designed to detect CS2 (carbon disulfide). Intended for industrial and environmental use, it supports continuous online monitoring and rapid leak detection with stable, long-term operation and a compact form factor.

Key features

• Environmental monitoring
• Gas leakage detection
• Online continuous monitoring
• Fast response and accurate measurement
• Resistant to poisoning
• Operates without requirement for oxygen
• Long lifespan (>5 years)
• Compact size

Model
MST-N7M CS2

Datasheet
Detection gas : CS2
Working principle : Nondispersive infrared (NDIR)
Measuring range : 0-5000 ppm
Accuracy : ±3%FS
Resolution : 1 ppm
Response time (T90) : <30s (Free diffusion)
Working temperature : -40℃ ~ 70℃
Storage temperature : -40℃ ~ 85℃
Working humidity : 0 ~ 95%RH, non-condensing
Preheating time : 1 min
Digital output : TTL level
Analog output : 0.4 ~ 2V
Supply voltage : 3.0 ~ 5.5 VDC
Working current : Average <75 mA @ 5VDC
Power consumption : 0.38W (Average value)
Lifespan : >5 years
Warranty : 1 year
Weight : 63g

Technical specifications

• Detection gas: CS2
• Principle: Nondispersive infrared (NDIR)
• Measuring range: 0-5000 ppm
• Accuracy: ±3%FS
• Resolution: 1 ppm
• Response time (T90): <30 s (free diffusion)
• Operating temperature: -40℃ to 70℃
• Storage temperature: -40℃ to 85℃
• Operating humidity: 0–95% RH (non-condensing)
• Preheating time: 1 min
• Digital output: TTL level
• Analog output: 0.4–2 V
• Supply voltage: 3.0–5.5 VDC
• Working current: Average <75 mA @ 5 VDC
• Power consumption: 0.38 W (average)
• Lifespan: >5 years
• Warranty: 1 year
• Weight: 63 g
