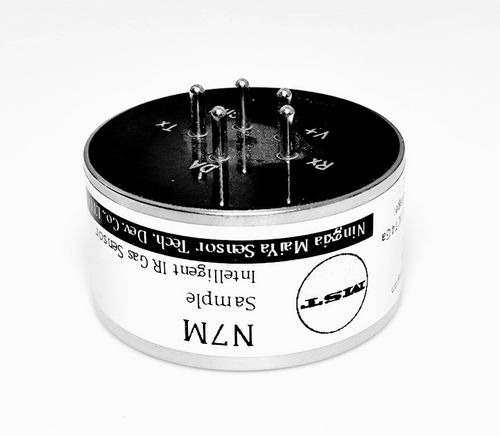

NDIR gas sensor MST-N7M
for industrial gas safety monitoringfor process measurementvoltage output

NDIR gas sensor - MST-N7M - Ningxia Maiya Sensor Technology - for industrial gas safety monitoring / for process measurement / voltage output
NDIR gas sensor - MST-N7M - Ningxia Maiya Sensor Technology - for industrial gas safety monitoring / for process measurement / voltage output
NDIR gas sensor - MST-N7M - Ningxia Maiya Sensor Technology - for industrial gas safety monitoring / for process measurement / voltage output - image - 2
NDIR gas sensor - MST-N7M - Ningxia Maiya Sensor Technology - for industrial gas safety monitoring / for process measurement / voltage output - image - 3
NDIR gas sensor - MST-N7M - Ningxia Maiya Sensor Technology - for industrial gas safety monitoring / for process measurement / voltage output - image - 4
Add to favorites
Compare this product
Go to the Ningxia Maiya Sensor Technology website for more information

Characteristics

Technology
NDIR
Applications
for industrial gas safety monitoring, for process measurement
Output
voltage output, TTL
Other characteristics
online, for real-time measuring, compact

Description

Overview
  • Environmental and gas-leak detection for industrial applications
  • Online monitoring with fast response and accurate measurement
  • NDIR detection principle — resistant to sensor poisoning; does not require oxygen for measurement
  • Compact form factor with long expected lifespan (>5 years)


Model
  • MST-N7M


Datasheet
  • Target gas: C3H2F6 (hexafluoropropane)
  • Measurement principle: Nondispersive infrared (NDIR)
  • Measuring range: 0–2000 ppm
  • Accuracy: ±3% FS
  • Resolution: 1 ppm
  • Response time (T90): <30 s (free diffusion)
  • Operating temperature: -40℃ to 70℃
  • Storage temperature: -40℃ to 85℃
  • Operating humidity: 0–95% RH (non-condensing)
  • Preheating time: 1 min
  • Digital output: TTL level
  • Analog output: 0.4–2 V
  • Supply voltage: 3.0–5.5 VDC
  • Typical operating current: <75 mA @ 5 VDC
  • Power consumption (avg): 0.38 W
  • Expected lifespan: >5 years
  • Warranty: 1 year
  • Weight: 63 g


Technical specifications
  • Target gas: C3H2F6 (hexafluoropropane)
  • Detection principle: Nondispersive infrared (NDIR)
  • Range: 0–2000 ppm; resolution 1 ppm
  • Accuracy: ±3% of full scale
  • Outputs: Digital (TTL) and analog 0.4–2 V
  • Supply: 3.0–5.5 VDC; typical current <75 mA at 5 VDC
  • Operating conditions: -40℃ to 70℃, 0–95% RH (non-condensing)
  • Preheat: 1 min; Response (T90): <30 s
  • Lifespan >5 years; Warranty 1 year; Weight 63 g
