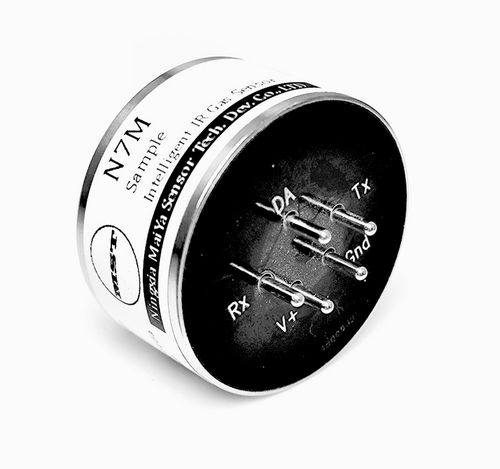

Chloroethylen volatile organic compound sensor MST-N7M

NDIRmonitoringfor leak detection

Overview

• Environmental detection
• Gas leakage detection
• On-line monitoring
• Quick response and accurate measurement
• Not susceptible to poisoning
• Operates without required oxygen
• More than 5 years lifespan
• Compact footprint

Model
MST-N7M C2H3Cl

Base specification
Detection gas: C2H3Cl (chloroethylene)
Working principle: Non-dispersive infrared (NDIR)
Measuring range: 0-1000 ppm
Accuracy: ±3% FS
Resolution: 1 ppm
Response time (T90): <30s (free diffusion)
Operating temperature: -40 °C ~ 70 °C
Storage temperature: -40 °C ~ 85 °C
Operating humidity: 0 ~ 95% RH, non-condensing
Preheating time: 1 min
Digital output: TTL level
Analog output: 0.4 ~ 2 V
Supply voltage: 3.0 ~ 5.5 VDC
Working current: Average <75 mA @ 5 VDC
Power consumption: 0.38 W (average)
Lifespan: >5 years
Warranty: 1 year
Weight: 63 g

Technical specifications

• Detection gas: C2H3Cl (chloroethylene)
• Working principle: Non-dispersive infrared (NDIR)
• Measuring range: 0-1000 ppm
• Accuracy: ±3% FS
• Resolution: 1 ppm
• Response time (T90): <30s (free diffusion)
• Operating temperature: -40 °C ~ 70 °C
• Storage temperature: -40 °C ~ 85 °C
• Operating humidity: 0 ~ 95% RH, non-condensing
• Preheating time: 1 min
• Digital output: TTL level
• Analog output: 0.4 ~ 2 V
• Supply voltage: 3.0 ~ 5.5 VDC
• Average working current: <75 mA @ 5 VDC
• Power consumption: 0.38 W (average)
• Lifespan: >5 years
• Warranty: 1 year
• Weight: 63 g
