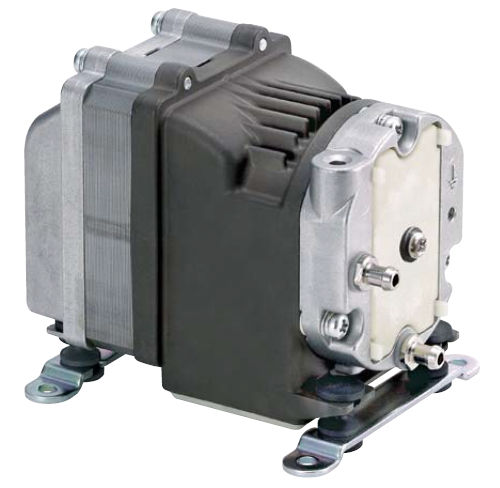

Linear piston vacuum pump DVH 130oil-freesingle-stagefor laboratory
Add to favorites
Compare this product
Characteristics
- Technology
- linear piston
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- for laboratory, for medical applications, for the chemical industry, for gas, OEM, for fuel cells, air sampling
- Other characteristics
- compact, low-noise level, small, air-cooled, portable, with electric actuator, compressor, mini
- Ultimate vacuum
-400 mbar
(-5.8 psi)- Flow rate
7 l/min
(1.85 us gal/min)
Description
Specifications
Attainable Vacuum: -400 mbar
Free Air Displacement: 7 l/min
Rated Voltage: 12 V
24 V
Current (Mean Value): 0.86 A
0.41 A
Life Expectancy: 10.000 h
Outlet: 6 mm O.D. hose barb
Duty Cycle: Continuous
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 76 x 70 mm
Gross Weight: 0.91 kg
Leadwire Length: 300 mm
