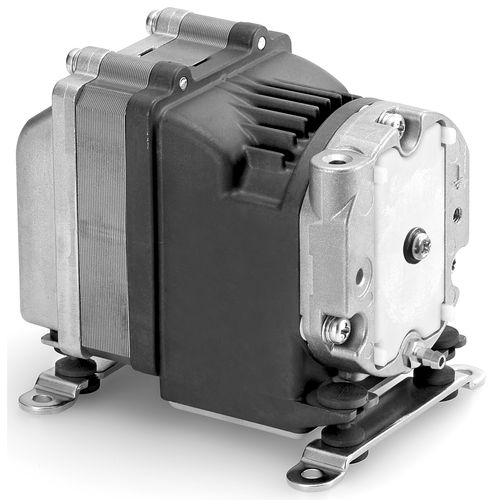

Linear piston vacuum pump DVH 145 oil-freesingle-stagefor laboratory
Add to favorites
Compare this product
Characteristics
- Technology
- linear piston
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- for laboratory, for medical applications, for the chemical industry, for gas, OEM, for fuel cells, for medical devices, air sampling
- Other characteristics
- compact, low-noise level, small, air-cooled, portable, with electric actuator, compressor, mini
- Ultimate vacuum
-400 mbar
(-5.8 psi)- Flow rate
3 l/min
(0.79 us gal/min)
Description
The Linear Piston DC Vacuum Pump DVH145-X1 can produce an attainable vacuum pressure -400 mbar and 12 V and 24 V rated voltage. The free air displacement value is 3 l/min with 0.73 A and 0.34 A current value. The expected life of the unit is 10,000 hours with continuous duty cycle. The outlet value of the pump is 6 mm O.D. hose barb. It is related to “A” class of coil insulation that is equivalent to JETL and the mounting dimensions are 76 L x 70 W mm. Its gross weight is 0.91 kg and the length of the lead wire is 300 mm.
