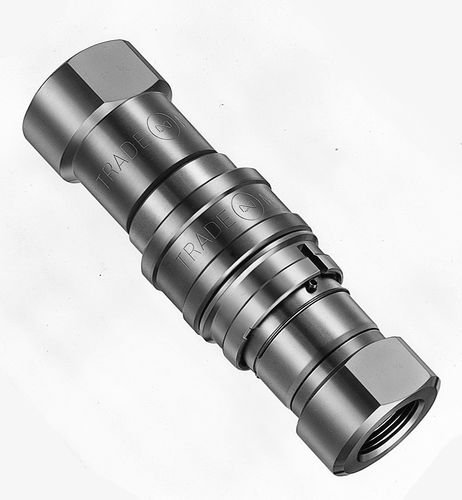

Quick coupling S210 Cupla
hydraulicfor gassocket

quick coupling
quick coupling
quick coupling
quick coupling
quick coupling
quick coupling
quick coupling
Add to favorites
Compare this product


hydraulic, for gas
quick, socket
stainless steel
Other characteristics
high-pressure, with shut-off valve, corrosion-resistant, poppet

0.25 in, 0.38 in, 0.5 in, 0.75 in, 1 in

Operating pressure

206 bar (2,987.78 psi)


Stainless steel for excellent corrosion resistance! The unique “inner seal mechanism” accepts a working pressure up to 20.6MPa. • Body material is excellent corrosion resistant stainless steel (SUS304). Suited for use in tough conditions such as ocean development. • Although it is made of stainless steel, the unique “inner seal mechanism” enables the working pressure of 20.6MPa {210kgf/cm2}, the same as steel’s. • Safety lock ensures tight and secured connection (preventing accidental disconnection) under vibration or impacts. • Both socket and plug have built-in automatic shut-off valves that prevent fluid outflow on disconnection. Easy to handle. Specifications Applicable Fluids: Water / Hydraulic Oil / Gas Working Pressure: 206 bar Valve Structure: Two-way shut-off Body Material: Stainless Steel Seal Material: FKM / NBR Size: 1/4" / 3/8" / 1/2" / 3/4" / 1"
