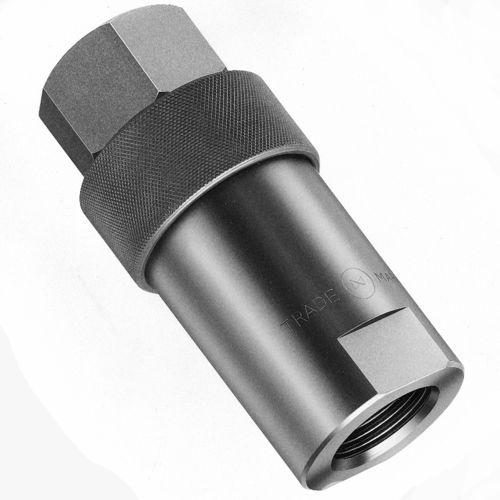

Hydraulic fitting Hyper HSP Cupla
screw-insocketfemale

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
screw-in, socket
Gender
female
Other characteristics
high-pressure, standard, high-flow, with shut-off valve
Diameter

0.25 in, 0.38 in, 0.5 in, 0.75 in, 1 in

Operating pressure

206 bar (2,987.78 psi)

Description

Purge function will set you free from the troublesome residual pressure elimination before connection and let you achieve efficient and frequent hydraulic pipe line coupling. • The special design to keep pressure loss extremely low is particularly ideal for hydraulic applications requiring high flow rates. Both socket and plug have built-in automatic shut-off valves to prevent fluid spill out when disconnected. • Interchangeable with standard HSP Cupla plug or socket in the same size. Specifications Applicable Fluids: Hydraulic Oil Working Pressure: 206 bar Valve Structure: Two-way shut-off Body Material: Steel Seal Material: NBR Size: 1/4" / 3/8" / 1/2" / 3/4" / 1"
