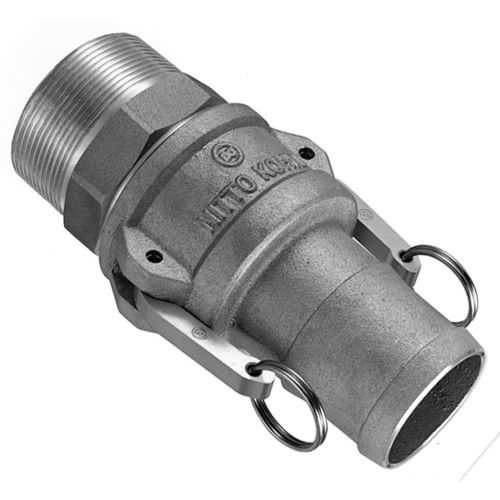

Hydraulic fitting Lever Lock Cupla
quickcamlockplastic

Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic - image - 2
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic - image - 3
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic - image - 4
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic - image - 5
Hydraulic fitting - Lever Lock Cupla - Nitto Kohki Europe - quick / camlock / plastic - image - 6
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
quick, camlock
Material
plastic, stainless steel
Gender
male, female
Other characteristics
poppet
Diameter

Max.: 4 in

Min.: 0.75 in

Operating pressure

Max.: 18 bar
(261.07 psi)

Min.: 2 bar
(29.01 psi)

Description

Nitto presents lever lock Cupla quick connect couplings. The plug and socket are connected without fail with a light lever pull-down. This makes them prepared to flow liquid or gases. The Cupla is compatible with a range of low-pressure applications in liquid or gas transportation. Fluid transportation is smooth as the internal fluid passage does not have any bumps or hollows due to the end-face seal structure. The couplings use a “Special lip seal”, except sizes 3/4”, 1” and silicon rubber seal. This results in a light lever action and secure and tight sealing upon connection. The dimensions of connection components are in compliance with US military specifications MIL-A-A-59326. The numerous body materials, sizes and end configurations are all standardized to suit a broad variety of applications. Safety can be further enhanced by a made-to-order design featuring an extra stopper function. Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases. • This Cupla complies with diversified applications in liquid or gas transportation. • End-face seal structure enables no bumps or hollows on the internal fluid passage, and ensures smooth fluid transportation. • “Special lip seal” adopted (except 3/4”, 1” sizes and silicon rubber seal) for light lever action and tight and sure sealing when connected. • Connection part dimensions comply with US military specifications MIL-A-A-59326. • The variety of body materials, sizes and end configurations has been standardized to comply with wide range of applications. • Additional stopper function design will enhance safety (made-to-order product).
