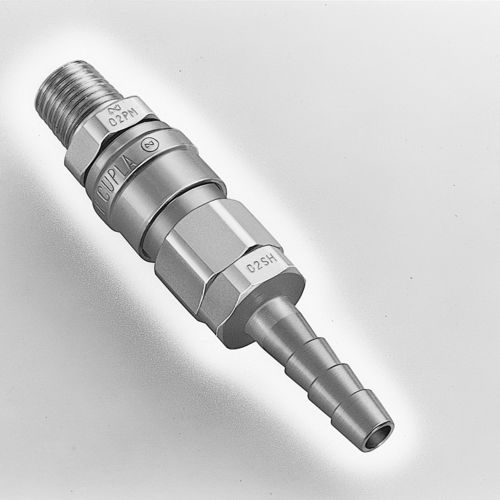

Pneumatic fitting Super Cupla
push-to-locksocketsteel

pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
push-to-lock, socket
Material
steel, aluminum
Gender
male, female
Other characteristics
with shut-off valve, lightweight, poppet
Diameter

0.13 in, 0.25 in

Operating pressure

10 bar (145.04 psi)

Description

The Super Cupla from Nitto, is equipped with a lightweight aluminum body. For direct connection, just insert the plug into the socket. Hi Cupla Models 20 to 40 are compatible for connection with the Model 02S20P. The unit comes in a broad variety of end configurations, that can be used in a broad range of applications. Meanwhile, quick connect or disconnect tube fitter types can be availed upon request. The lightweight design makes the Cupla best suited to power tools! Push-to-connect for easy operation. • Lightweight design suits direct connection to power tools. Aluminum body is adopted for some models to reduce the weight. • Just push the plug into socket for easy one hand connection. • Available in various end configurations for a wide range of pneumatic applications. • Model 02S20P can be connected with sockets for Hi Cupla Models 20, 30 and 40. • Also available with quick connect / disconnect Tube Fitter type.
