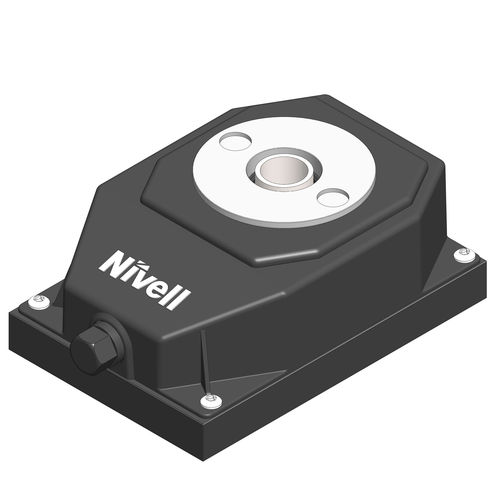

Precision leveling wedge DK-2/10

precision leveling wedge
precision leveling wedge
Add to favorites
Compare this product

Go to the NIVELL website for more information

Characteristics

Applications
precision

Description

Drawing number 3211-00 Dimension floor bolting M20 Alternativ floor bolting M16/M24 Spacing washer to push-in cam see accessories Fine adjusting range 10 mm Maximum adjustment load 120 kN Maximum torque 72 Nm Torque per 10 kN 6 Nm Hexagonal wrench for adjustment 17 mm Height adjustment per adjusting screw turn 0,546 mm Flexibility/rigidity 5000 N/µm Weight of wedge 6,2 kg
