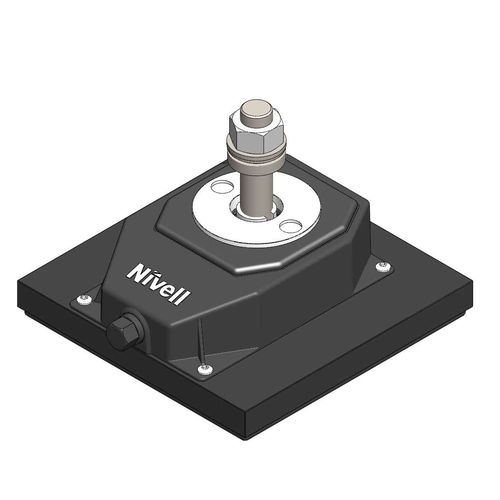

Precision leveling wedge DKP-2/10 200 x 200

adjustablewith screw on bolt

Drawing number 3244-01 Dimension bolting M20 x 75 (100) Alternativ floor bolting M16 Spacing washer to push-in cam see accessories Fine adjusting range 10 mm Maximum adjustment load 120 kN Maximum torque 72 Nm Torque per 10 kN 6 Nm Hexagonal Allen key for adjustment 17 mm Height adjustment per adjusting screw turn 0,546 mm Vibration protection, nitril vulcanised on 6 mm 80° Shore Weight of wedge 10,3 kg
