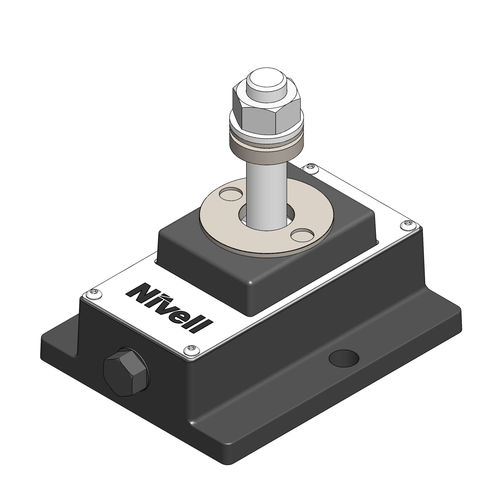

Precision leveling wedge DKA-3 M24x100 (130)
adjustablewith screw on bolt

precision leveling wedge
precision leveling wedge
Add to favorites
Compare this product


Characteristics

Applications
precision
Other characteristics
adjustable, with screw on bolt

Description

Drawing number 3634-02 Dimension floor bolting M24 x 100 (130) Kind of floor bolting screw on bolt Alternativ floor bolting M20 / M30 Spacing washer to push-in cam see accessories Fine adjusting range 7 mm Maximum adjustment load 250 kN Maximum torque 150 Nm Torque per 10 kN 6 Nm Hexagonal wrench for adjustment 24 mm Height adjustment per adjusting screw turn 0,444 mm Flexibility/rigidity 6000 N/µm Weight of wedge 9,5 kg
