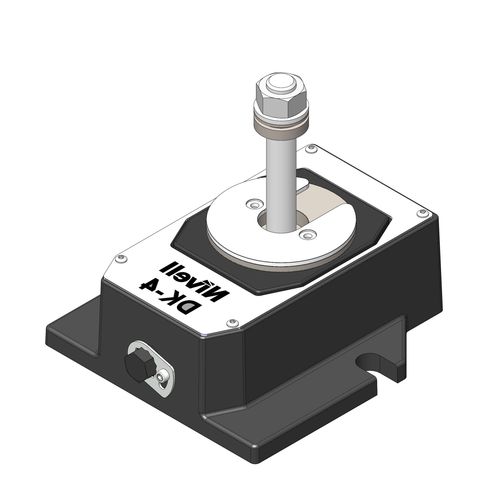

Precision leveling wedge DKP-4, M24x140 (240)

adjustablewith screw on bolt

Drawing number 3745-01 Dimension bolting M24 x 140 (240) Alternativ floor bolting M20 / M30 Spacing washer to push-in cam see accessories Fine adjusting range 9 mm Maximum adjustment load 400 kN Maximum torque 200 Nm Torque per 10 kN 5 Nm Hexagonal Allen key for adjustment 24 mm Height adjustment per adjusting screw turn 0,375 mm Vibration protection, nitril vulcanised on 2 mm 80° Shore Weight of wedge 21,30 kg
