Toggle switch WT seriesleversingle-polewaterproof
Add to favorites
Compare this product
Characteristics
- Type
- toggle, lever
- Number of poles
- single-pole
- Protection level
- waterproof, IP67
- Other characteristics
- non-illuminated, electromechanical
- Primary current
Max.: 10 A
Min.: 6 A
- Voltage
Max.: 250 V
Min.: 30 V
Description

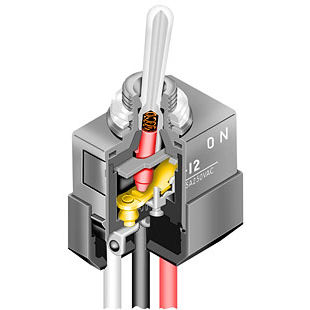

WT-Series Environmentally Sealed Toggle SwitchesEnvironmentally Sealed Toggle Switches 10A Power Level; Bushing Mount, Environmentally Sealed, IP67, Optional Wire Leads Available in 10A toggles, 6A push buttons and in 15A rockers. Anti-jamming design on toggle switches protects contacts from damage caused by excessive downward force on the actuator. Sealed construction conforms to IP67 of IEC529 Standards and allows for use in outdoor or harsh applications.
Catalogs
No catalogs are available for this product.
See all of NKK Switches‘s catalogs
