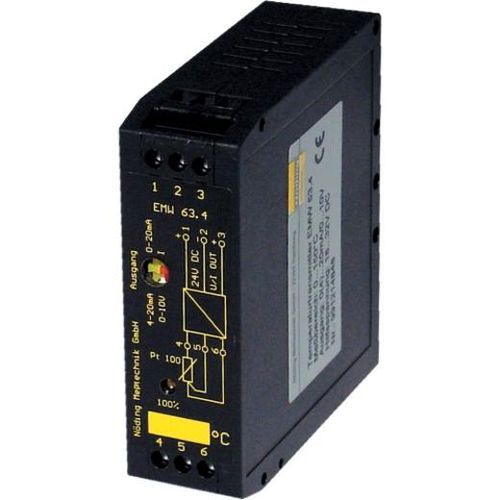

DIN rail mount temperature transmitter EMW63.4Pt100resistance4-20 mA
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail mount
- Input type
- Pt100, resistance
- Output signal
- 4-20 mA, 0-10 V
- Temperature range
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
The electronics of the EMW 63.4 temperature transmitter converts the resistance value of a PT100 sensor into a 0(4)...20 mA or 0...10V signal.
Features
Power supply 18...30V DC
Applications:
Control cabinet installation, Temperature measurement
Technical data:
Short circuit current - < 30 mA
Accuracy - ≤ ± 0,3 % FS @ 25 °C
Residual ripple - < 50 mVss
Power supply - 18...30 V DC, max 50 mA
Temperature range - 0...60 °C
Temperature coefficient - ≤ ± 0,02 % FS/K
Housing - Polyamide 6.6
Catalogs
EMW 63.4
2 Pages
